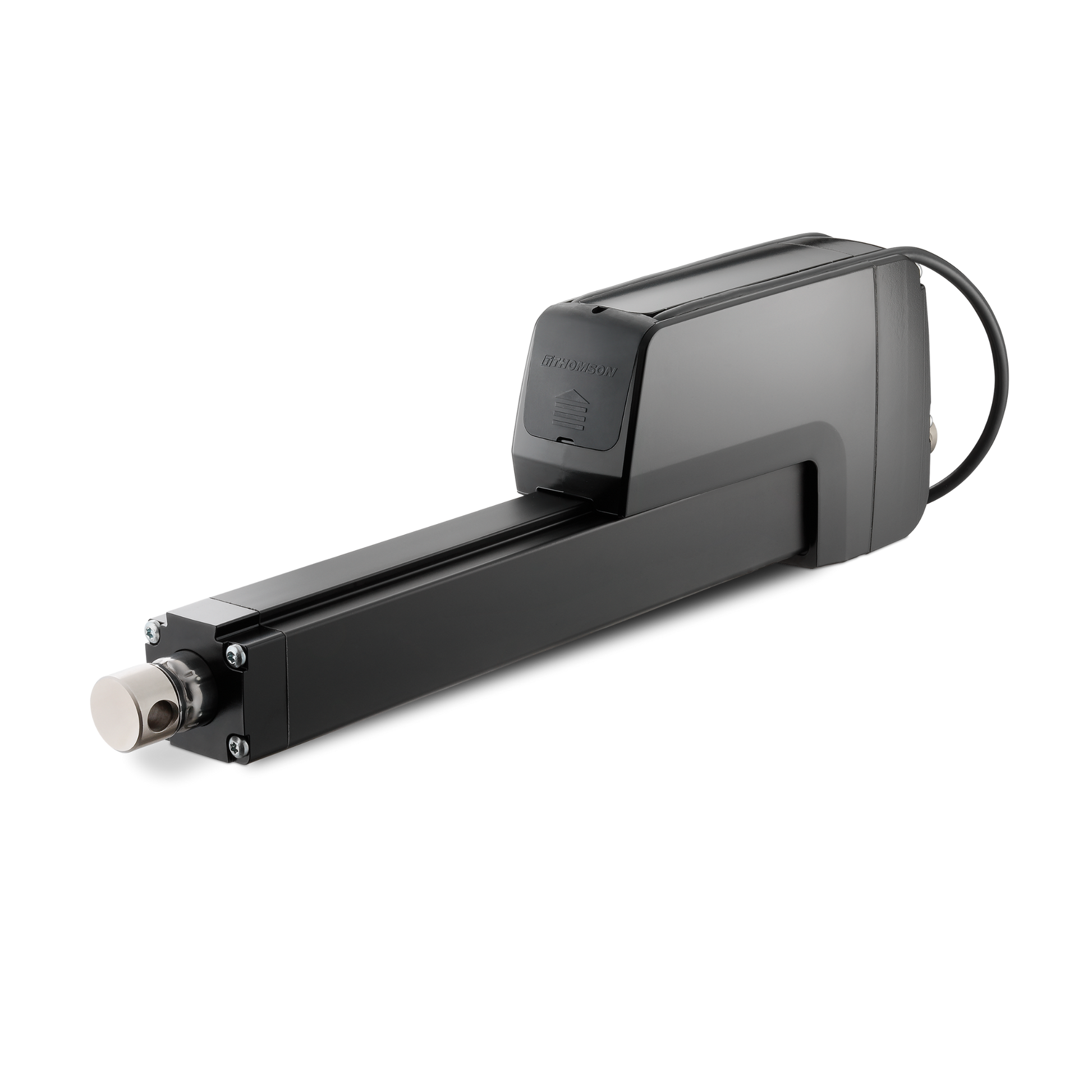

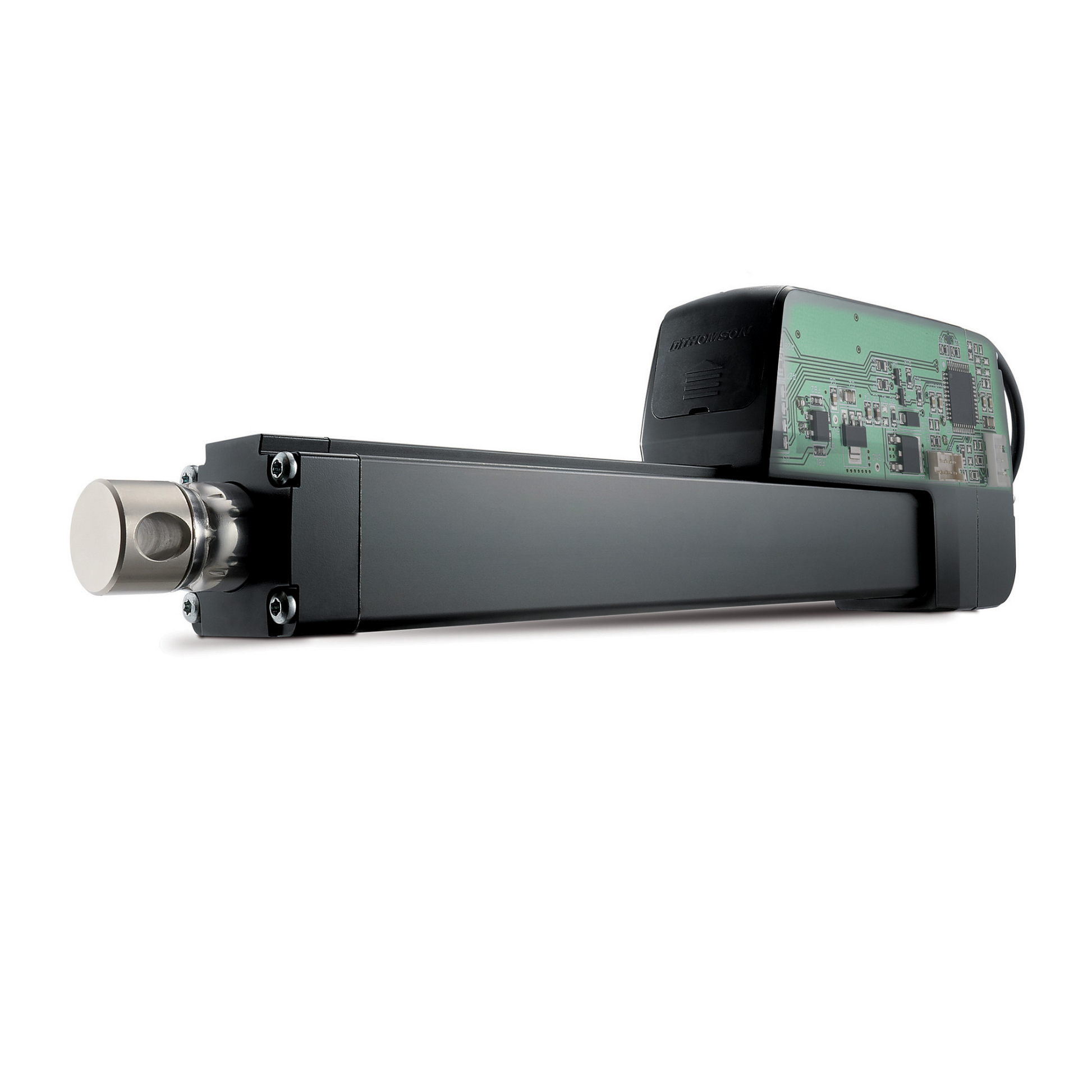

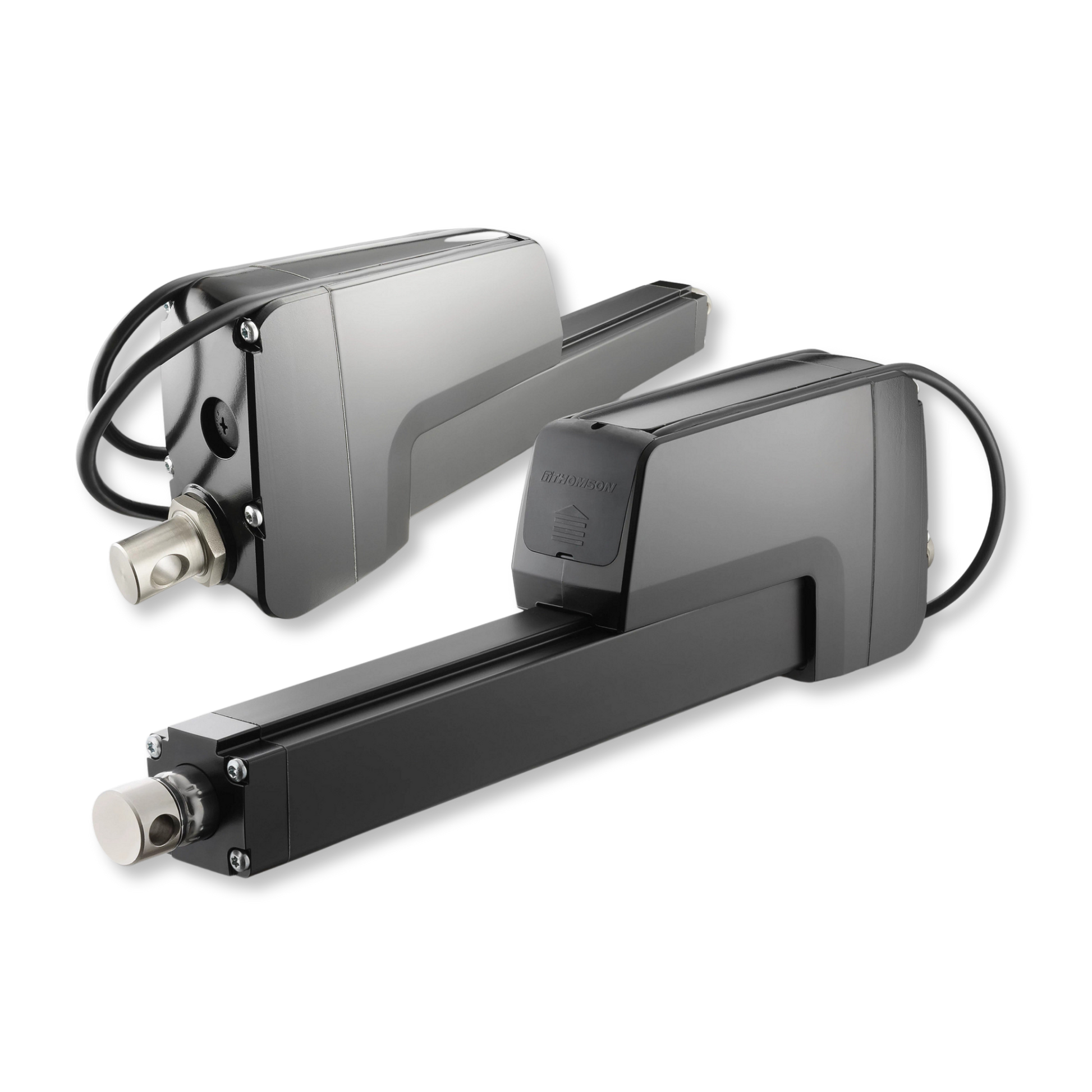

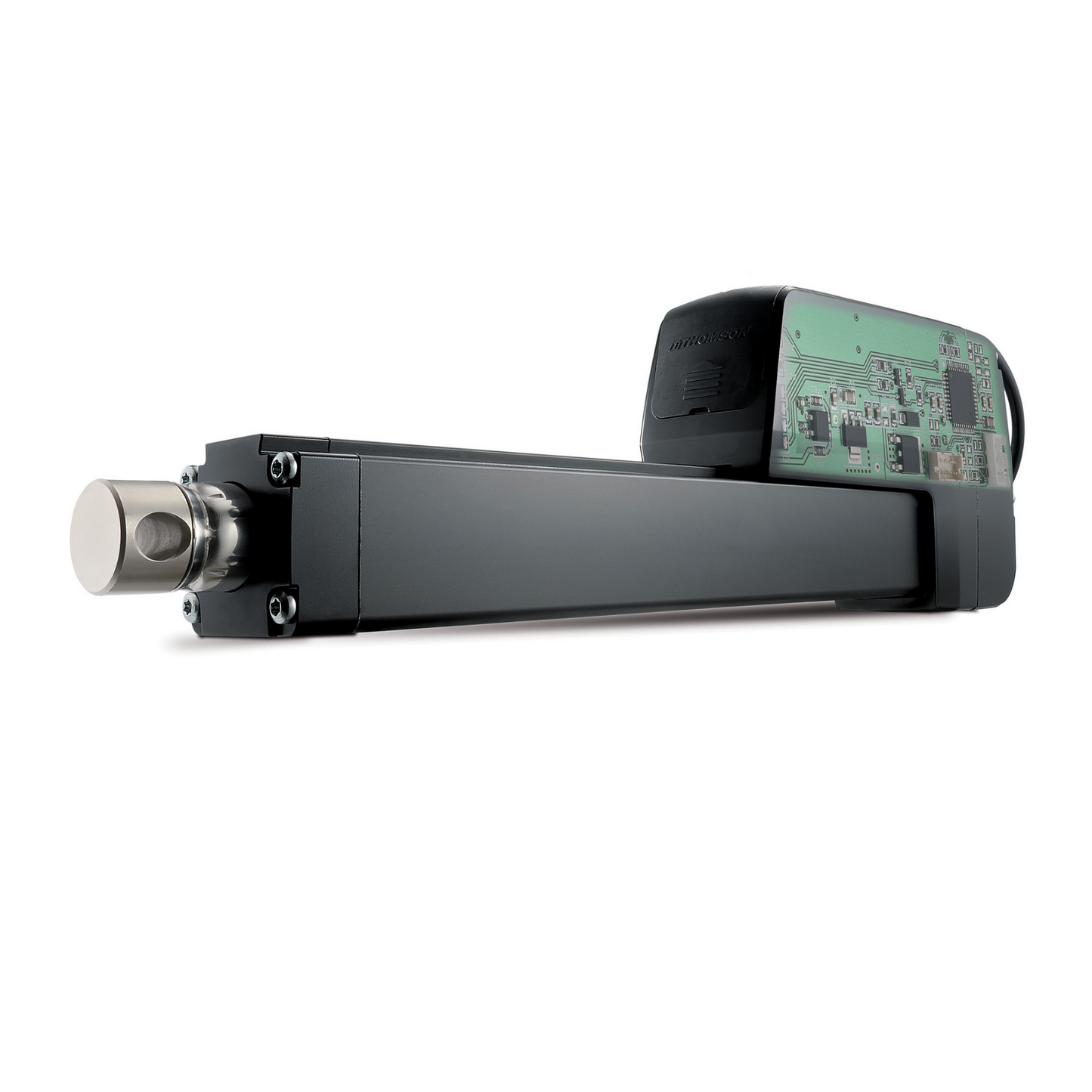

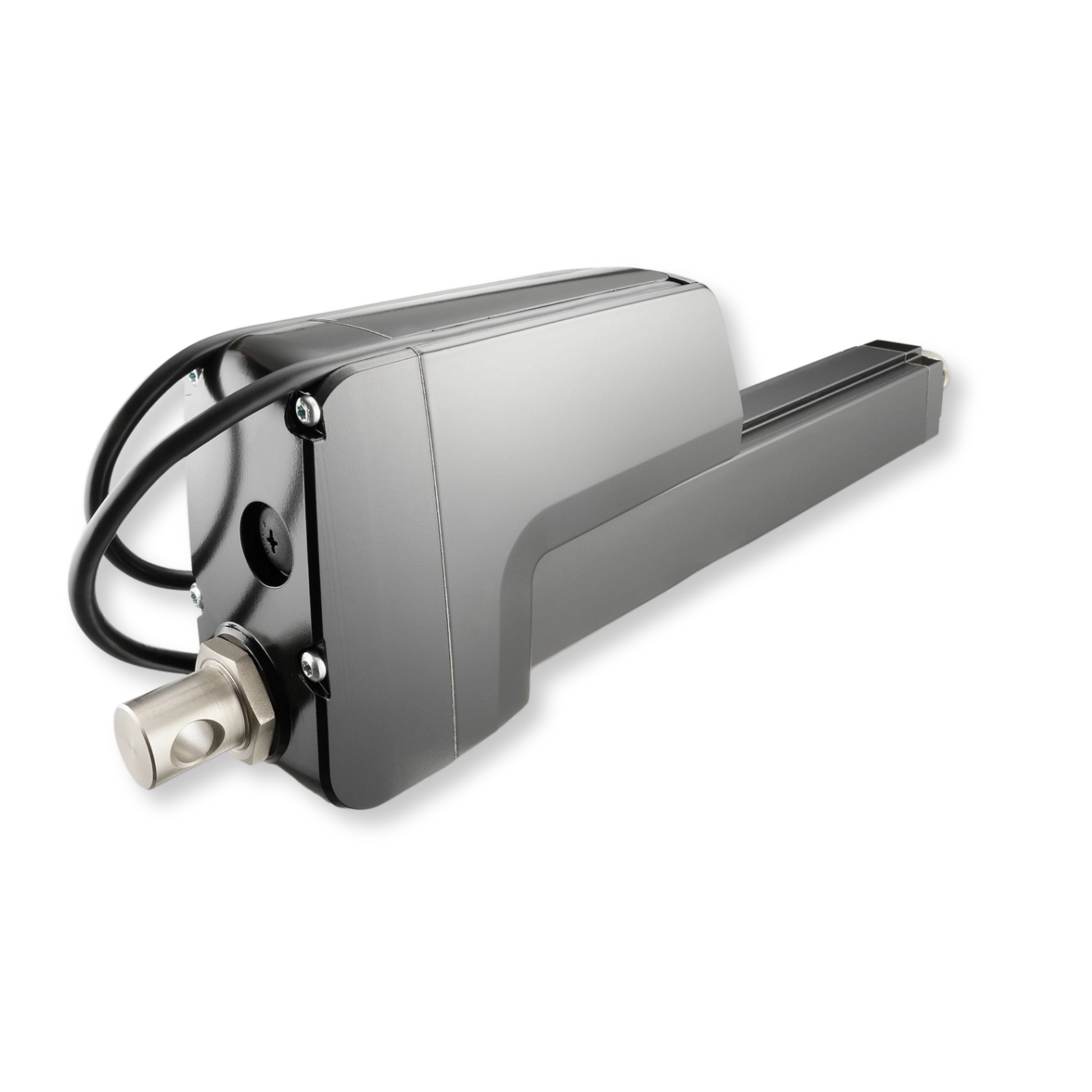

Electrak HD Linear Actuator HD24B100-0100EXP[1|2|3]AGMD

Electrak HD Linear Actuator HD24B100-0100EXP[1|2|3]AGMD

Electrak HD Linear Actuator, 24 VDC, Dynamic Load: 10.000 N, Max. Stroke: 100 mm, Control: EXP = Electronic Monitoring Package + analog (potentiometer) position output, Rear-Adapter: Rear mounting flange, Front-Adapter: Inch 1/2-20 UNF-2B female thread, Adapter 90° turned
Partnumber related to selected cable length: 0,3 m HD24B100-0100EXP1AGMD - 1,5 m HD24B100-0100EXP2AGMD - 5,0 m HD24B100-0100EXP3AGMD
$1,210.00 USD
$1,210.00 USD
Sale Sold out
All prices exclude tax. Shipping calculated at checkout.

Delivery Time

⏱ Manufacturing time:
working days
📦 Estimated shipping time:
7-10 working days (United States)

* According to the manufacturer’s information – as of October 24, 2025. If you have any questions, feel free to contact us by email: info@sr-linear.com.

  • Electrak® HD – Premium linear actuator: more power, longer stroke
  • Maximum protection against environmental influences: IP69K (static), IP67 (static), and IP66 (dynamic) – proven to withstand the toughest conditions.
  • Tested for 200 hours in salt spray environment.
  • Certified according to CE, RoHS, and REACH (EU).
  • Integrated manual override.
  • Standard anti-rotation piston rod.
  • Built-in thermal overload protection.
View full details

Specifications

Product-Family Characteristics:
IP Rating, Static
IP67 / IP69K
IP Rating, Dynamic
IP66
Screw Type
Ball Screw Drive
Temperature Min
-40 °C
Temperature Max
85 °C
Anti-Rotation
Yes
Brake
Built-in dynamic braking
End Play, Max
1.200 mm
Material
Zinc alloy, Aluminum, Stainless Steel
Temperature Monitoring
Yes
Certifications
CE
Restraining Torque
0 Nm
Integrated Motor Control
Yes
Electronic Load Monitoring
Yes
Contains Liquids
No
Returnable
No
Manual Override
Yes
Special Connector
Flying leads
Product Characteristics:
.
Electrak Modular Control System options
EXP = Electronic Monitoring Package + analog (potentiometer) position output
Protection, End of Stroke
End of Stroke
Protection, Mid Stroke
Electronic Load Monitoring
Feedback
Potentiometer
Nominal Stroke
100 mm
Front Adapter Option
Inch 1/2-20 UNF-2B female thread
Rear Adapter Option
Rear mounting flange
Adapter Orientation
90° turned
Voltage Tolerance
18 - 32 VDC
Weight
6.7 kg
Voltage
24 VDC
Cable Length
0,3 m HD24B100-0100EXP1AGMD
1,5 m HD24B100-0100EXP2AGMD
5,0 m HD24B100-0100EXP3AGMD

Dimension

Product Characteristics:
Nominal Stroke [S]
100 mm
Dimension [A]
304.8 mm
Dimension [B1]
7.8 mm
Dimension [B2]
0 mm
Dimension [B3]
95 mm
Dimension [B4]
6.6 mm
Dimension [C1]
23.9 mm
Dimension [C2]
30 mm
Dimension [C3]
30.2 mm
Dimension [Ltot total]
312.6 mm

Performance

Product Characteristics:
Load, Static, Max
18.000 N
Load, Dynamic
10.000 N
Duty Cyle
15%
Current Draw @ no load/max. Load
3/18 amp
Salt Spray Resistance
500 hrs
Max. Speed
11 mm/s
Min. Speed
9 mm/s
