Collection: Elektrohubzylinder Electrak LA14

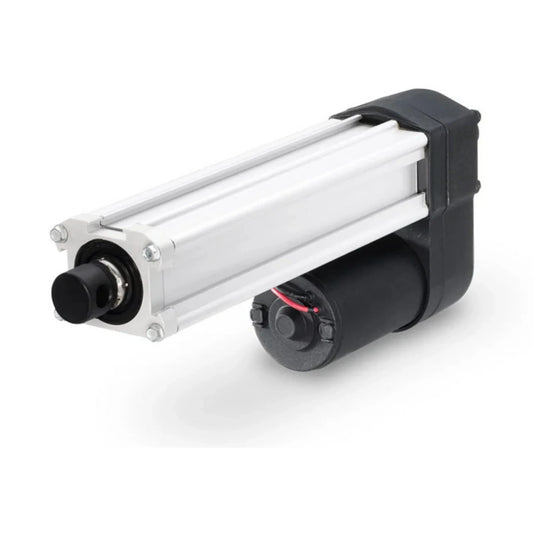

Electrak® LA14 is based on the Electrak 10 design, which incorporates a screw drive system for applications requiring maximum load capacity, robust performance, and long life. Its additional benefits offer the a built-in anti rotation mechanism and an aluminium cover tube. The aluminium cover tube has T-slots that can be used for mounting and also accepts magnetic sensor to be fitted along two sides of the tube.
-
N = potentiometer
LA14 | N | fyling leads -
NHW = Manual override
LA14 | NHW | flying leadsselected -
NPO = potentiometer
LA14 | NPO | fyling leads -
NHW = manual override
LA14 | NHW | Packard Electric 56 Series -
NPO = potentiometer
LA14 | NPO | Packard Electric 56 Series -
NHW = manual override
LA14 | NHW | AMP terminal 42098-2, house 180908-5 -
N = no option
LA14 | N | AMP terminal 42098-2, house 180908-5 -
NPO = potentiometer
LA14 | NPO | AMP terminal 42098-2, house 180908-5
-
Electrak LA14 Linear Actuator DA36-21B65M20M0NHW-DEE
DescriptionLinear Actuator, 36 Vdc, Dynamic Load: 6.800 N (680,4 kg / 1.500 lbf), Ball Screw Drive, Max. 15 mm/s, Max. Stroke: 200 mm, Control: manual override, Front-Adapter: cross hole for 0.5 inch pin, Rear-Adapter: cross hole for 0.5 inch pin, Rear / front adapter hole position: both adapters at 0° (standard position), Connector option: no connector (flying leads)
Regular price €967,74 EURRegular priceUnit price per -
Electrak LA14 Linear Actuator DA36-21B65M15M0NHW-DMM
DescriptionLinear Actuator, 36 Vdc, Dynamic Load: 6.800 N (680,4 kg / 1.500 lbf), Ball Screw Drive, Max. 15 mm/s, Max. Stroke: 150 mm, Control: manual override, Front-Adapter: cross hole for 12 mm pin, Rear-Adapter: cross hole for 12 mm pin, Rear / front adapter hole position: both adapters at 0° (standard position), Connector option: no connector (flying leads)
Regular price €959,20 EURRegular priceUnit price per -
Electrak LA14 Linear Actuator DA36-21B65M15M0NHW-DMK
DescriptionLinear Actuator, 36 Vdc, Dynamic Load: 6.800 N (680,4 kg / 1.500 lbf), Ball Screw Drive, Max. 15 mm/s, Max. Stroke: 150 mm, Control: manual override, Front-Adapter: cross hole for 12 mm pin, Rear-Adapter: cross hole for 10 mm pin, Rear / front adapter hole position: both adapters at 0° (standard position), Connector option: no connector (flying leads)
Regular price €959,20 EURRegular priceUnit price per -
Electrak LA14 Linear Actuator DA36-21B65M15M0NHW-DME
DescriptionLinear Actuator, 36 Vdc, Dynamic Load: 6.800 N (680,4 kg / 1.500 lbf), Ball Screw Drive, Max. 15 mm/s, Max. Stroke: 150 mm, Control: manual override, Front-Adapter: cross hole for 12 mm pin, Rear-Adapter: cross hole for 0.5 inch pin, Rear / front adapter hole position: both adapters at 0° (standard position), Connector option: no connector (flying leads)
Regular price €959,20 EURRegular priceUnit price per -
Electrak LA14 Linear Actuator DA36-21B65M15M0NHW-DKM
DescriptionLinear Actuator, 36 Vdc, Dynamic Load: 6.800 N (680,4 kg / 1.500 lbf), Ball Screw Drive, Max. 15 mm/s, Max. Stroke: 150 mm, Control: manual override, Front-Adapter: cross hole for 10 mm pin, Rear-Adapter: cross hole for 12 mm pin, Rear / front adapter hole position: both adapters at 0° (standard position), Connector option: no connector (flying leads)
Regular price €959,20 EURRegular priceUnit price per -
Electrak LA14 Linear Actuator DA36-21B65M15M0NHW-DKK
DescriptionLinear Actuator, 36 Vdc, Dynamic Load: 6.800 N (680,4 kg / 1.500 lbf), Ball Screw Drive, Max. 15 mm/s, Max. Stroke: 150 mm, Control: manual override, Front-Adapter: cross hole for 10 mm pin, Rear-Adapter: cross hole for 10 mm pin, Rear / front adapter hole position: both adapters at 0° (standard position), Connector option: no connector (flying leads)
Regular price €959,20 EURRegular priceUnit price per -
Electrak LA14 Linear Actuator DA36-21B65M15M0NHW-DKE
DescriptionLinear Actuator, 36 Vdc, Dynamic Load: 6.800 N (680,4 kg / 1.500 lbf), Ball Screw Drive, Max. 15 mm/s, Max. Stroke: 150 mm, Control: manual override, Front-Adapter: cross hole for 10 mm pin, Rear-Adapter: cross hole for 0.5 inch pin, Rear / front adapter hole position: both adapters at 0° (standard position), Connector option: no connector (flying leads)
Regular price €959,20 EURRegular priceUnit price per -
Electrak LA14 Linear Actuator DA36-21B65M15M0NHW-DEM
DescriptionLinear Actuator, 36 Vdc, Dynamic Load: 6.800 N (680,4 kg / 1.500 lbf), Ball Screw Drive, Max. 15 mm/s, Max. Stroke: 150 mm, Control: manual override, Front-Adapter: cross hole for 0.5 inch pin, Rear-Adapter: cross hole for 12 mm pin, Rear / front adapter hole position: both adapters at 0° (standard position), Connector option: no connector (flying leads)
Regular price €959,20 EURRegular priceUnit price per -
Electrak LA14 Linear Actuator DA36-21B65M15M0NHW-DEK
DescriptionLinear Actuator, 36 Vdc, Dynamic Load: 6.800 N (680,4 kg / 1.500 lbf), Ball Screw Drive, Max. 15 mm/s, Max. Stroke: 150 mm, Control: manual override, Front-Adapter: cross hole for 0.5 inch pin, Rear-Adapter: cross hole for 10 mm pin, Rear / front adapter hole position: both adapters at 0° (standard position), Connector option: no connector (flying leads)
Regular price €959,20 EURRegular priceUnit price per -
Electrak LA14 Linear Actuator DA36-21B65M15M0NHW-DEE
DescriptionLinear Actuator, 36 Vdc, Dynamic Load: 6.800 N (680,4 kg / 1.500 lbf), Ball Screw Drive, Max. 15 mm/s, Max. Stroke: 150 mm, Control: manual override, Front-Adapter: cross hole for 0.5 inch pin, Rear-Adapter: cross hole for 0.5 inch pin, Rear / front adapter hole position: both adapters at 0° (standard position), Connector option: no connector (flying leads)
Regular price €959,20 EURRegular priceUnit price per -
Electrak LA14 Linear Actuator DA36-21B65M10M0NHW-DMM
DescriptionLinear Actuator, 36 Vdc, Dynamic Load: 6.800 N (680,4 kg / 1.500 lbf), Ball Screw Drive, Max. 15 mm/s, Max. Stroke: 100 mm, Control: manual override, Front-Adapter: cross hole for 12 mm pin, Rear-Adapter: cross hole for 12 mm pin, Rear / front adapter hole position: both adapters at 0° (standard position), Connector option: no connector (flying leads)
Regular price €950,66 EURRegular priceUnit price per -
Electrak LA14 Linear Actuator DA36-21B65M10M0NHW-DMK
DescriptionLinear Actuator, 36 Vdc, Dynamic Load: 6.800 N (680,4 kg / 1.500 lbf), Ball Screw Drive, Max. 15 mm/s, Max. Stroke: 100 mm, Control: manual override, Front-Adapter: cross hole for 12 mm pin, Rear-Adapter: cross hole for 10 mm pin, Rear / front adapter hole position: both adapters at 0° (standard position), Connector option: no connector (flying leads)
Regular price €950,66 EURRegular priceUnit price per -
Electrak LA14 Linear Actuator DA36-21B65M10M0NHW-DME
DescriptionLinear Actuator, 36 Vdc, Dynamic Load: 6.800 N (680,4 kg / 1.500 lbf), Ball Screw Drive, Max. 15 mm/s, Max. Stroke: 100 mm, Control: manual override, Front-Adapter: cross hole for 12 mm pin, Rear-Adapter: cross hole for 0.5 inch pin, Rear / front adapter hole position: both adapters at 0° (standard position), Connector option: no connector (flying leads)
Regular price €950,66 EURRegular priceUnit price per -
Electrak LA14 Linear Actuator DA36-21B65M10M0NHW-DKM
DescriptionLinear Actuator, 36 Vdc, Dynamic Load: 6.800 N (680,4 kg / 1.500 lbf), Ball Screw Drive, Max. 15 mm/s, Max. Stroke: 100 mm, Control: manual override, Front-Adapter: cross hole for 10 mm pin, Rear-Adapter: cross hole for 12 mm pin, Rear / front adapter hole position: both adapters at 0° (standard position), Connector option: no connector (flying leads)
Regular price €950,66 EURRegular priceUnit price per -
Electrak LA14 Linear Actuator DA36-21B65M10M0NHW-DKK
DescriptionLinear Actuator, 36 Vdc, Dynamic Load: 6.800 N (680,4 kg / 1.500 lbf), Ball Screw Drive, Max. 15 mm/s, Max. Stroke: 100 mm, Control: manual override, Front-Adapter: cross hole for 10 mm pin, Rear-Adapter: cross hole for 10 mm pin, Rear / front adapter hole position: both adapters at 0° (standard position), Connector option: no connector (flying leads)
Regular price €950,66 EURRegular priceUnit price per -
Electrak LA14 Linear Actuator DA36-21B65M10M0NHW-DKE
DescriptionLinear Actuator, 36 Vdc, Dynamic Load: 6.800 N (680,4 kg / 1.500 lbf), Ball Screw Drive, Max. 15 mm/s, Max. Stroke: 100 mm, Control: manual override, Front-Adapter: cross hole for 10 mm pin, Rear-Adapter: cross hole for 0.5 inch pin, Rear / front adapter hole position: both adapters at 0° (standard position), Connector option: no connector (flying leads)
Regular price €950,66 EURRegular priceUnit price per
