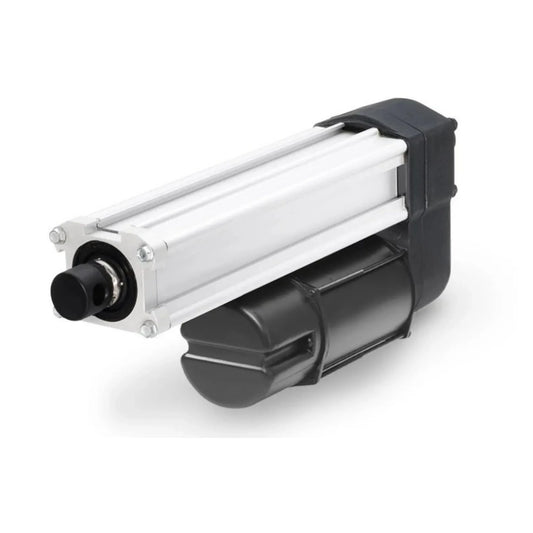

Collection: Liner Actuator Electrak LA-24

Linear Actuator, 230 Vac, Dynamic Load: 2.250 N (229,5 kg / 506 lbf), Acme Screw, Max. 30 mm/s, Max. Stroke: 250 mm, Control: anti-coast brake, Front-Adapter: 1/2-20 UNF 2B female thread, Rear-Adapter: cross hole for 10 mm pin, Rear / front adapter hole position: both adapters at 0° (standard position)

Linear Actuator, 230 Vac, Dynamic Load: 2.250 N (229,5 kg / 506 lbf), Acme Screw, Max. 30 mm/s, Max. Stroke: 250 mm, Control: anti-coast brake, Front-Adapter: 1/2-20 UNF 2B female thread, Rear-Adapter: cross hole for 0.5 inch pin, Rear / front adapter hole position: both adapters at 0° (standard position)

Linear Actuator, 230 Vac, Dynamic Load: 2.250 N (229,5 kg / 506 lbf), Acme Screw, Max. 30 mm/s, Max. Stroke: 250 mm, Control: anti-coast brake, Front-Adapter: forked cross hole for 0.5 inch pin, Rear-Adapter: cross hole for 12 mm pin, Rear / front adapter hole position: both adapters at 0° (standard position)

Linear Actuator, 230 Vac, Dynamic Load: 2.250 N (229,5 kg / 506 lbf), Acme Screw, Max. 30 mm/s, Max. Stroke: 250 mm, Control: anti-coast brake, Front-Adapter: forked cross hole for 0.5 inch pin, Rear-Adapter: cross hole for 10 mm pin, Rear / front adapter hole position: both adapters at 0° (standard position)

Linear Actuator, 230 Vac, Dynamic Load: 2.250 N (229,5 kg / 506 lbf), Acme Screw, Max. 30 mm/s, Max. Stroke: 250 mm, Control: anti-coast brake, Front-Adapter: forked cross hole for 0.5 inch pin, Rear-Adapter: cross hole for 0.5 inch pin, Rear / front adapter hole position: both adapters at 0° (standard position)

Linear Actuator, 230 Vac, Dynamic Load: 2.250 N (229,5 kg / 506 lbf), Acme Screw, Max. 30 mm/s, Max. Stroke: 250 mm, Control: anti-coast brake, Front-Adapter: cross hole for 0.5 inch pin, Rear-Adapter: cross hole for 12 mm pin, Rear / front adapter hole position: both adapters at 0° (standard position)

Linear Actuator, 230 Vac, Dynamic Load: 2.250 N (229,5 kg / 506 lbf), Acme Screw, Max. 30 mm/s, Max. Stroke: 250 mm, Control: anti-coast brake, Front-Adapter: cross hole for 0.5 inch pin, Rear-Adapter: cross hole for 10 mm pin, Rear / front adapter hole position: both adapters at 0° (standard position)

Linear Actuator, 230 Vac, Dynamic Load: 2.250 N (229,5 kg / 506 lbf), Acme Screw, Max. 30 mm/s, Max. Stroke: 250 mm, Control: anti-coast brake, Front-Adapter: cross hole for 0.5 inch pin, Rear-Adapter: cross hole for 0.5 inch pin, Rear / front adapter hole position: both adapters at 0° (standard position)

Linear Actuator, 230 Vac, Dynamic Load: 2.250 N (229,5 kg / 506 lbf), Acme Screw, Max. 30 mm/s, Max. Stroke: 200 mm, Control: anti-coast brake, Front-Adapter: M12 female thread, Rear-Adapter: cross hole for 12 mm pin, Rear / front adapter hole position: both adapters at 90°

Linear Actuator, 230 Vac, Dynamic Load: 2.250 N (229,5 kg / 506 lbf), Acme Screw, Max. 30 mm/s, Max. Stroke: 200 mm, Control: anti-coast brake, Front-Adapter: M12 female thread, Rear-Adapter: cross hole for 10 mm pin, Rear / front adapter hole position: both adapters at 90°

Linear Actuator, 230 Vac, Dynamic Load: 2.250 N (229,5 kg / 506 lbf), Acme Screw, Max. 30 mm/s, Max. Stroke: 200 mm, Control: anti-coast brake, Front-Adapter: M12 female thread, Rear-Adapter: cross hole for 0.5 inch pin, Rear / front adapter hole position: both adapters at 90°

Linear Actuator, 230 Vac, Dynamic Load: 2.250 N (229,5 kg / 506 lbf), Acme Screw, Max. 30 mm/s, Max. Stroke: 200 mm, Control: anti-coast brake, Front-Adapter: forked cross hole for 12 mm pin, Rear-Adapter: cross hole for 12 mm pin, Rear / front adapter hole position: both adapters at 90°

Linear Actuator, 230 Vac, Dynamic Load: 2.250 N (229,5 kg / 506 lbf), Acme Screw, Max. 30 mm/s, Max. Stroke: 200 mm, Control: anti-coast brake, Front-Adapter: forked cross hole for 12 mm pin, Rear-Adapter: cross hole for 10 mm pin, Rear / front adapter hole position: both adapters at 90°

Linear Actuator, 230 Vac, Dynamic Load: 2.250 N (229,5 kg / 506 lbf), Acme Screw, Max. 30 mm/s, Max. Stroke: 200 mm, Control: anti-coast brake, Front-Adapter: forked cross hole for 12 mm pin, Rear-Adapter: cross hole for 0.5 inch pin, Rear / front adapter hole position: both adapters at 90°

Linear Actuator, 230 Vac, Dynamic Load: 2.250 N (229,5 kg / 506 lbf), Acme Screw, Max. 30 mm/s, Max. Stroke: 200 mm, Control: anti-coast brake, Front-Adapter: cross hole for 12 mm pin, Rear-Adapter: cross hole for 12 mm pin, Rear / front adapter hole position: both adapters at 90°

Linear Actuator, 230 Vac, Dynamic Load: 2.250 N (229,5 kg / 506 lbf), Acme Screw, Max. 30 mm/s, Max. Stroke: 200 mm, Control: anti-coast brake, Front-Adapter: cross hole for 12 mm pin, Rear-Adapter: cross hole for 10 mm pin, Rear / front adapter hole position: both adapters at 90°
