Thomson Neff Industries GmbH

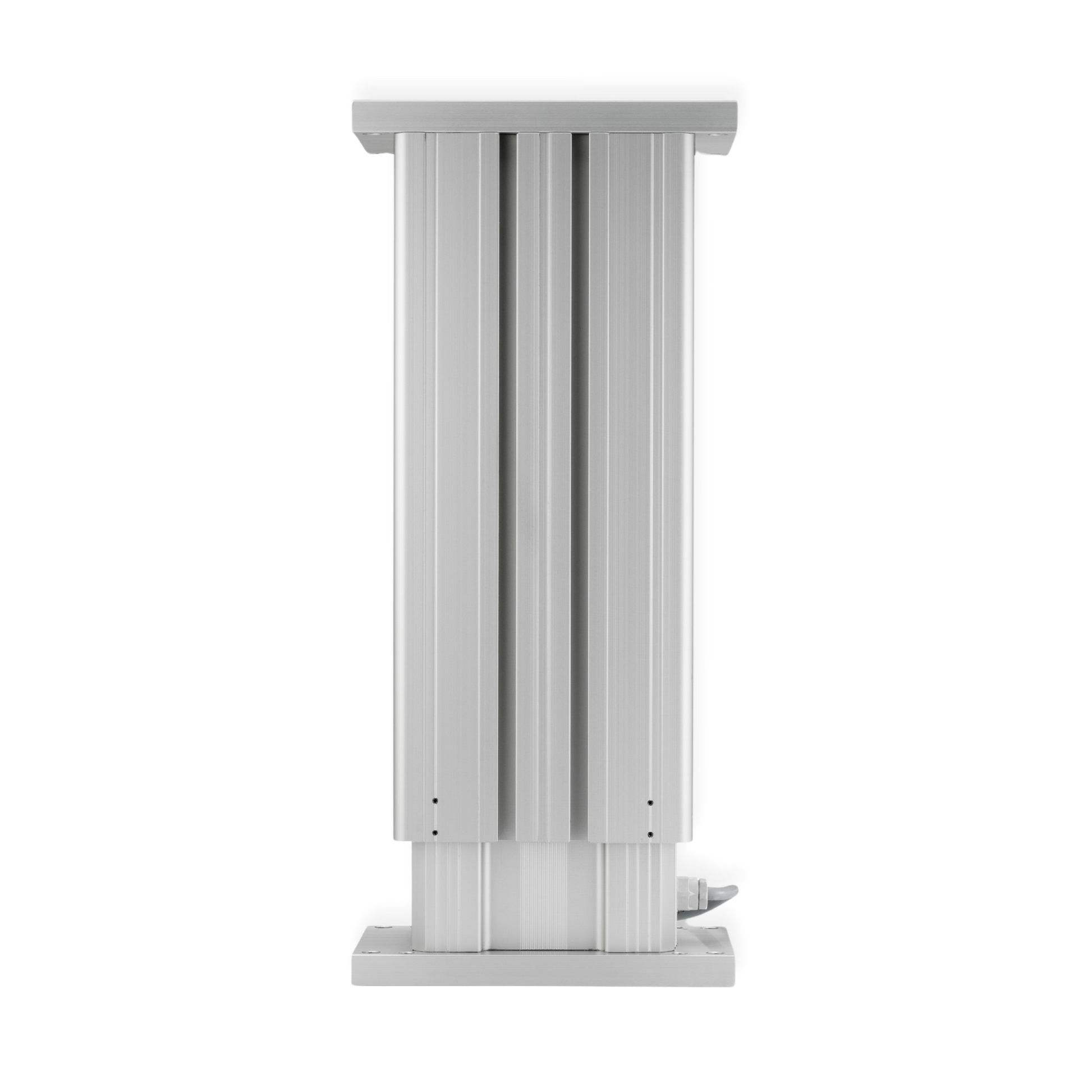

DMD Lifting Column DMD12-10A5-18PO

DMD Lifting Column DMD12-10A5-18PO

Lifting Column, DMD, Lead Screw Drive, 12 VDC, 18 in (457,2 mm) Stroke, 2250 N, Potentiometer

€1.870,06 EUR
€1.870,06 EUR
Sale Sold out
All prices exclude tax. Shipping calculated at checkout.

Delivery Time

⏱ Manufacturing time:
25 working days
📦 Estimated shipping time:
2-6 working days (Belgium)

* According to the manufacturer’s information – as of October 24, 2025. If you have any questions, feel free to contact us by email: info@sr-linear.com.

  • Self supporting column in extruded anodized aluminum with high load torque capability
  • Rugged, robust and strong
  • T-slot grooves along the entire profile
  • Maintenance free
View full details

Specifications

Product-Family Characteristics:
IP Rating, Static
IP65
Temperature Min
-25 °C
Temperature Max
65 °C
Anti-Rotation
yes
End Play, Max
1,0 mm
Cable Length
2000 mm
Special Connector
flying leads
Product Characteristics:
.
Certifications
CE
Nominal Stroke
457,2 mm [18 inch]
Weight
31.5 kg
Screw Type
Lead Screw Drive
Voltage
12 VDC

Dimension

Product Characteristics:
Nominal Stroke [S]
457,2 mm [18 inch]
Length [L]
790,2 mm (31,12 inch)

Performance

Product Characteristics:
Load, Static, Max
11350 N
Load, Dynamic
2250 N
Duty Cyle
25%
Travel Rate @ Full Load
18 mm/s
Travel Rate @ No Load
30 mm/s
