Thomson Neff Industries GmbH

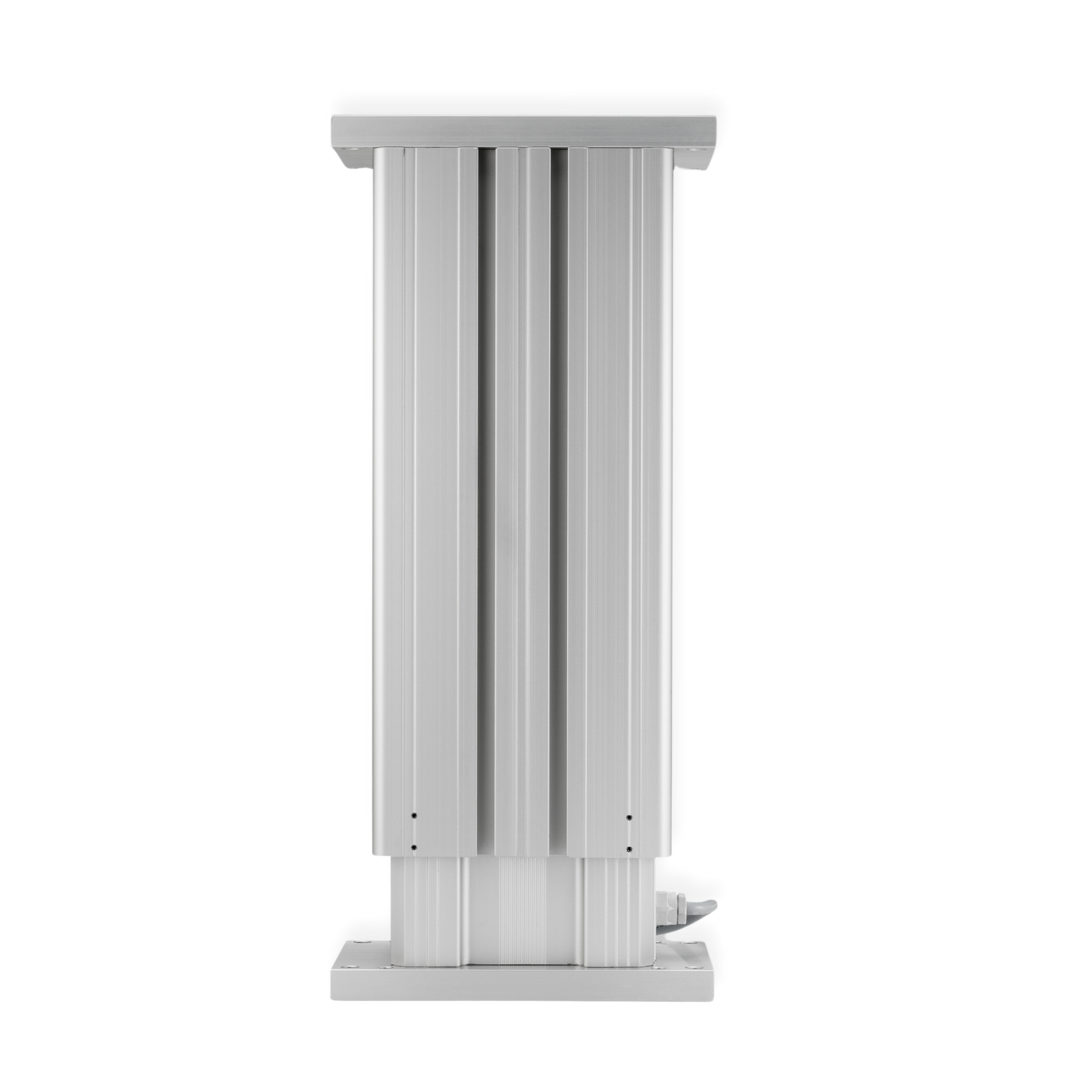

DMHD Lifting Column DMHD12-B017-0250-CNO-1

DMHD Lifting Column DMHD12-B017-0250-CNO-1

Lifting Column DMHD, Ball Screw Drive, 12 VDC, Stroke: 250 mm [9,84 inch], Dynamic Load: 1700 N, SAE J1939 CAN Bus Control + Open-Loop Speed Control, 1,5 m long cable with flying leads

€1.824,24 EUR
€1.824,24 EUR
Sale Sold out
All prices exclude tax. Shipping calculated at checkout.

Delivery Time

⏱ Manufacturing time:
working days
📦 Estimated shipping time:
2-6 working days (Belgium)

* According to the manufacturer’s information – as of October 24, 2025. If you have any questions, feel free to contact us by email: info@sr-linear.com.

  • Self-supporting column in extruded anodized aluminium with high load torque capability
  • Rugged, robust and strong
  • T-slot grooves along the entire profile
  • Maintenance free
View full details

Specifications

Product-Family Characteristics:
IP Rating, Static
IP 65
Screw Type
Ball Screw Drive
Temperature Min
-40 °C
Temperature Max
85 °C
Anti-Rotation
yes
End Play, Max
1,2 mm
Product Characteristics:
.
Electrak Modular Control System options
CNO = SAE J1939 CAN bus + open-loop speed control
Certifications
CE
Nominal Stroke
250 mm [9,84 inch]
Weight
26.4 kg
Voltage
12 VDC
Cable Length
1,5 m
Special Connector
Flying Leads

Dimension

Product Characteristics:
Nominal Stroke [S]
250 mm [9,84 inch]
Length [L]
507 mm [20 inch]

Performance

Product Characteristics:
Load, Static, Max
18000 N
Load, Dynamic
1700 N
Duty Cyle
25%
Travel Rate @ Full Load
58 mm/s
Travel Rate @ No Load
71 mm/s
