HD, MD, XD, LA14, LA24, E050, 1(SP)
Thomson Linear Actuators
For more than 50 years, Thomson has pioneered the development of advanced electric linear actuators, delivering efficient, long-life and value-driven solutions to countless applications. Browse the many resources below to discover which actuator is ideal for your next linear motion project.
Product Families & Product Configuration
-
Electrak HD Linear Actuator
EXX = Electronic Monitoring Package with protection and diagnostic functions
-
Electrak MD Linear Actuator
Designed as a smaller sibling to the Electrak HD actuator, these smart...
-

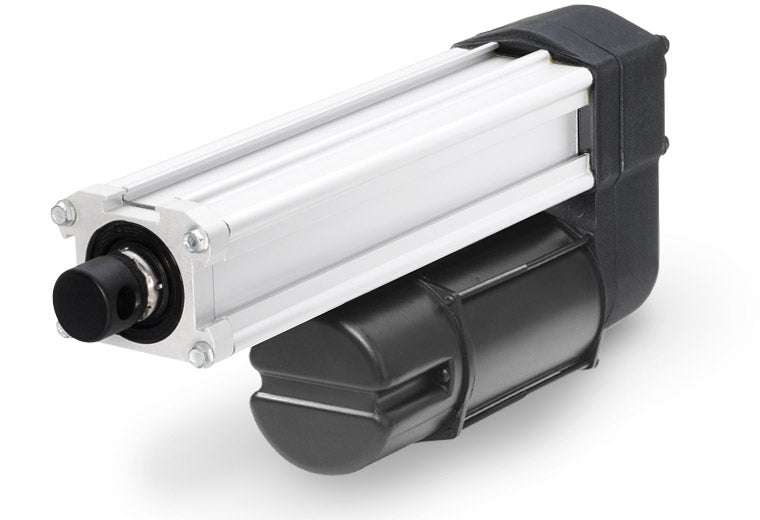

Liner Actuator Electrak LA-24
NHW = Manual override
-

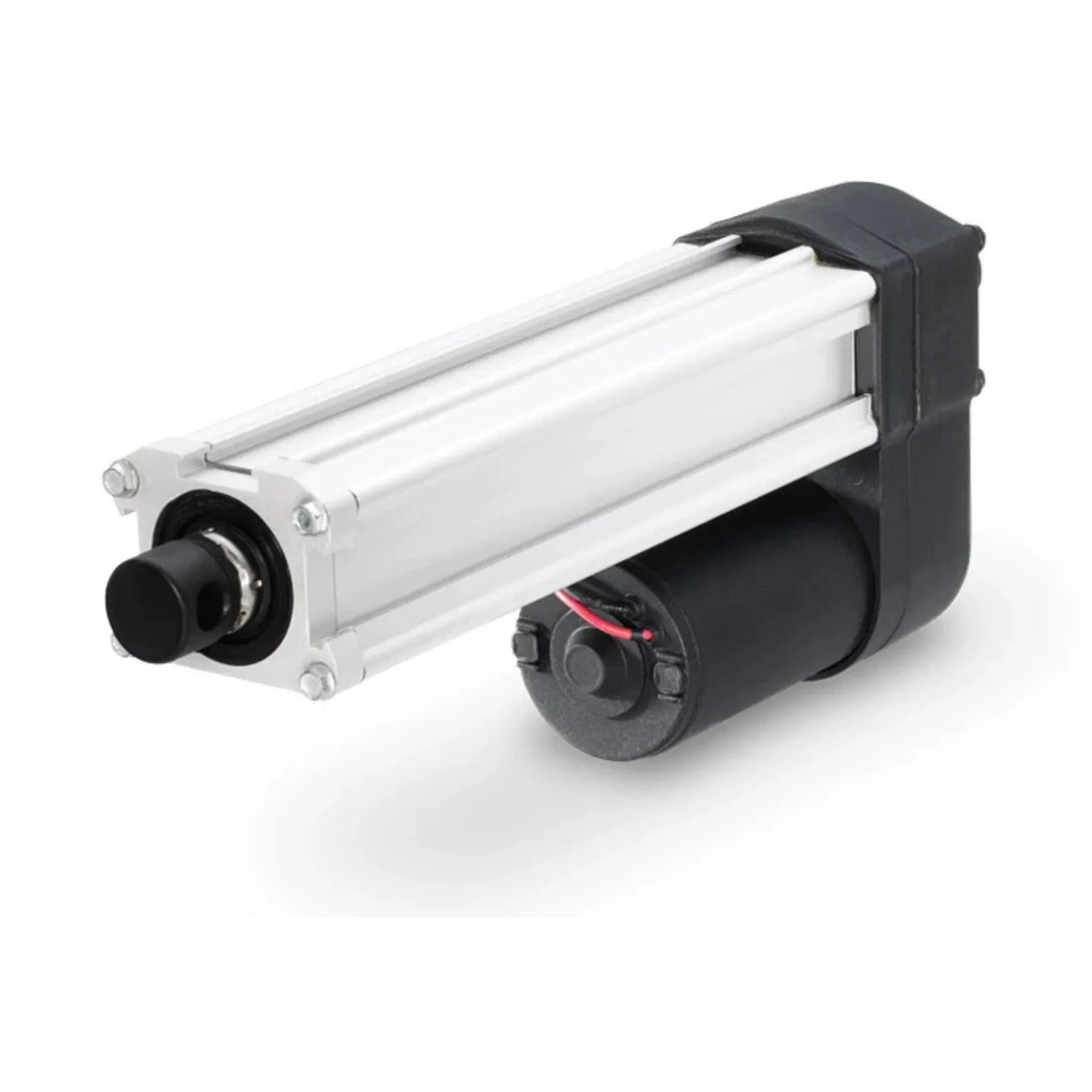

Elektrohubzylinder Electrak LA14
NHW = Manual override
-
Linear Actuators Overview
Thomson linear actuators offer ideal solutions for a wide range of applications....
Latest Products
-
Electrak HD Linear Actuator HD48B160-0500LXP[1|2|3]NGMD
DescriptionElectrak HD Linear Actuator, 48 VDC, Dynamic Load: 16.000 N, Max. Stroke: 500 mm, Control: LXP = Electronic Monitoring Package + low-level signal motor switching + analog (potentiometer) position output, Rear-Adapter: Forked cross hole for 12 mm pin, Front-Adapter: Inch 1/2-20 UNF-2B female thread, Adapter 90° turned
Regular price $1,651.00 USDRegular priceUnit price per -
Electrak HD Linear Actuator HD48B160-0500LXP[1|2|3]NGSD
DescriptionElectrak HD Linear Actuator, 48 VDC, Dynamic Load: 16.000 N, Max. Stroke: 500 mm, Control: LXP = Electronic Monitoring Package + low-level signal motor switching + analog (potentiometer) position output, Rear-Adapter: Forked cross hole for 12 mm pin, Front-Adapter: Inch 1/2-20 UNF-2B female thread, Standard-Adapterorientation
Regular price $1,651.00 USDRegular priceUnit price per -
Electrak HD Linear Actuator HD48B160-0500LXP[1|2|3]NPMD
DescriptionElectrak HD Linear Actuator, 48 VDC, Dynamic Load: 16.000 N, Max. Stroke: 500 mm, Control: LXP = Electronic Monitoring Package + low-level signal motor switching + analog (potentiometer) position output, Rear-Adapter: Forked cross hole for 12 mm pin, Front-Adapter: Metric M12 female thread, Adapter 90° turned
Regular price $1,651.00 USDRegular priceUnit price per -
Electrak HD Linear Actuator HD48B160-0500LXP[1|2|3]NPSD
DescriptionElectrak HD Linear Actuator, 48 VDC, Dynamic Load: 16.000 N, Max. Stroke: 500 mm, Control: LXP = Electronic Monitoring Package + low-level signal motor switching + analog (potentiometer) position output, Rear-Adapter: Forked cross hole for 12 mm pin, Front-Adapter: Metric M12 female thread, Standard-Adapterorientation
Regular price $1,651.00 USDRegular priceUnit price per
![Electrak HD Linear Actuator HD48B160-0500LXP[1|2|3]NGMD](http://sr-linear.com/cdn/shop/files/HD_title_5dfeb2ac-624b-4a87-a70e-f2fb1090fbff.webp?v=1757065572&width=533)
![Electrak HD Linear Actuator HD48B160-0500LXP[1|2|3]NGMD](http://sr-linear.com/cdn/shop/files/HD_pic_2_4fd78efd-68ca-4f36-a037-50a4b51ffc06.webp?v=1757065572&width=533)
![Electrak HD Linear Actuator HD48B160-0500LXP[1|2|3]NGSD](http://sr-linear.com/cdn/shop/files/HD_title_f3217633-ac71-4c9c-b0a7-43fcae15d6b2.webp?v=1757065569&width=533)
![Electrak HD Linear Actuator HD48B160-0500LXP[1|2|3]NGSD](http://sr-linear.com/cdn/shop/files/HD_pic_2_38d9221d-d884-4621-ab77-c402eba206f7.webp?v=1757065570&width=533)
![Electrak HD Linear Actuator HD48B160-0500LXP[1|2|3]NPMD](http://sr-linear.com/cdn/shop/files/HD_title_d762b82b-ba93-477c-ae6d-98bd9d5cb084.webp?v=1757065567&width=533)
![Electrak HD Linear Actuator HD48B160-0500LXP[1|2|3]NPMD](http://sr-linear.com/cdn/shop/files/HD_pic_2_fa78e560-a761-4bf9-85da-360311dbdc70.webp?v=1757065568&width=533)
![Electrak HD Linear Actuator HD48B160-0500LXP[1|2|3]NPSD](http://sr-linear.com/cdn/shop/files/HD_title_ed8f75a2-af45-43b2-bb3f-bbad2b9c7ce2.webp?v=1757065564&width=533)
![Electrak HD Linear Actuator HD48B160-0500LXP[1|2|3]NPSD](http://sr-linear.com/cdn/shop/files/HD_pic_2_2416bf1b-bb81-44af-b14b-266f05e3b674.webp?v=1757065565&width=533)
DMA/DMD/DMHD, LC2000/LC3000
Thomson Lifting Columns
Thomson Lifting Columns are designed with the same care and expertise as Thomson's industry-leading series of linear actuators. During the development process, our focus was on space saving, modern design, high performance, and safe operation. Along with our maintenance free life, easy installation, and light weight envelope, these lifting columns are a first choice for domestic, medical, and work place applications.
Liftings Columns Product Families
-
Thomson Lifting Columns DMHD
DMHD lifting columns are self-supporting, height adjustable units designed for a variety...
-
Thomson Lifting Columns DMA
DMA lifting columns are self-supporting, height adjustable units designed for a variety...
-
Thomson Lifting Columns DMD
DMD lifting columns are self-supporting, height adjustable units designed for a variety...
-

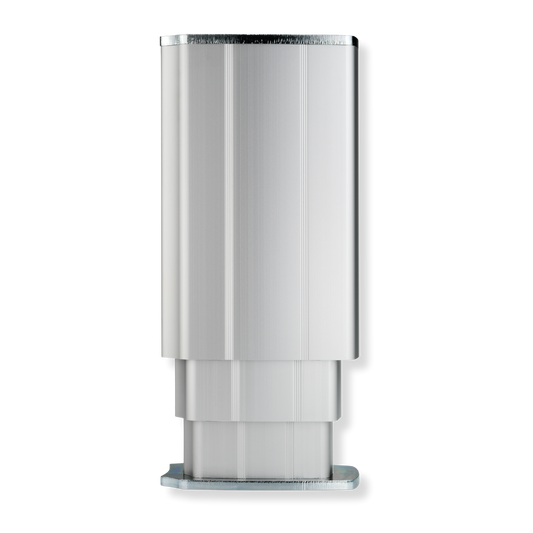

Thomson Lifting Columns LC2000
Perfect for medical and ergonomic automation applications, Thomson's LC2000 Lifting Column gives...
-
Thomson Lifting Columns LC3000
Thomson's LC3000 Lifting Column gives your application a simple, all-in-one solution -...
-
DCG Control Series for LC2000 & LC3000
Small and lightweight control operated via a control pendant (ordered separately) Available...
-
Lifting Columns Overview
Thomson Lifting Columns are designed with the same care and expertise as...
Our latest products
-
LC2000 Lifting Column LC2000N24-300291NE
DescriptionLifting Column LC2000, Lead Screw, Telescopic Drive, 24 VDC, Stroke: 300 mm, Retracted length 291mm , Max. Load: 2000 N, encoder feedback, Molex connector
Regular price $1,064.00 USDRegular priceUnit price per -
DMA Lifting Column DMA22-21B5-16
DescriptionLifting Column, DMA, Ball Screw Drive, 230 VAC, 16 in (406,4 mm) Stroke, 6800 N
Regular price $2,737.00 USDRegular priceUnit price per -
LC3000 Lifting Column LC3000N24-400530NX
DescriptionLifting Column LC3000, Ball Screw Drive, 24 VDC, Stroke: 400 mm, Retracted length 530mm , Max. Load: 3000 N, no feedback, Molex connector
Regular price $1,336.00 USDRegular priceUnit price per -
LC3000 Lifting Column LC3000N24-350480NX
DescriptionLifting Column LC3000, Ball Screw Drive, 24 VDC, Stroke: 350 mm, Retracted length 480mm , Max. Load: 3000 N, no feedback, Molex connector
Regular price $1,300.00 USDRegular priceUnit price per
The next evolution of electric actuators has arrived. Loads up to 25,000 N. Duty cycle up to 100%. Smart control.
- The Electrak Modular Control System (EMCS) is the foundation for the best onboard controls currently available in electric linear actuators and includes optional, built-in CANopen® and SAE J1939 CAN bus support.
- Higher power and longer stroke lengths enable Electrak HD to tackle applications outside the range of traditional electric linear actuators.
- Electrak HD is tested to meet and exceed the toughest OEM mechanical and electronic component acceptance tests on the market today.
- Additional Standard Features: Integrated manual override, standard anti-rotation actuation, integrated thermal overload protection, load lock in case of ball nut overload failure, flexible front and rear clevis options
