Collection: Elektrohubzylinder Electrak LA14
Electrak® LA14 is based on the Electrak 10 design, which incorporates a screw drive system for applications requiring maximum load capacity, robust performance, and long life. Its additional benefits offer the a built-in anti rotation mechanism and an aluminium cover tube. The aluminium cover tube has T-slots that can be used for mounting and also accepts magnetic sensor to be fitted along two sides of the tube.
-
N = potentiometer
LA14 | N | fyling leads -
NHW = Manual override
LA14 | NHW | flying leads -
NPO = potentiometer
LA14 | NPO | fyling leads -
NHW = manual override
LA14 | NHW | Packard Electric 56 Series -
NPO = potentiometer
LA14 | NPO | Packard Electric 56 Series -
NHW = manual override
LA14 | NHW | AMP terminal 42098-2, house 180908-5 -
N = no option
LA14 | N | AMP terminal 42098-2, house 180908-5 -
NPO = potentiometer
LA14 | NPO | AMP terminal 42098-2, house 180908-5
-
Electrak LA14 Linear Actuator DA24-21B65M60MFNPO-DEM
DescriptionLinear Actuator, 24 Vdc, Dynamic Load: 6.800 N (680,4 kg / 1.500 lbf), Ball Screw Drive, Max. 15 mm/s, Max. Stroke: 600 mm, Control: potentiometer, Front-Adapter: cross hole for 0.5 inch pin, Rear-Adapter: cross hole for 12 mm pin, Rear / front adapter hole position: both adapters at 90°, Connector option: no connector (flying leads)
Regular price $1,453.00 USDRegular priceUnit price per -
Electrak LA14 Linear Actuator DA24-21B65M60M0NPO-DEM
DescriptionLinear Actuator, 24 Vdc, Dynamic Load: 6.800 N (680,4 kg / 1.500 lbf), Ball Screw Drive, Max. 15 mm/s, Max. Stroke: 600 mm, Control: potentiometer, Front-Adapter: cross hole for 0.5 inch pin, Rear-Adapter: cross hole for 12 mm pin, Rear / front adapter hole position: both adapters at 0° (standard position), Connector option: no connector (flying leads)
Regular price $1,453.00 USDRegular priceUnit price per -
Electrak LA14 Linear Actuator DA24-21B65M60MFNPO-DEK
DescriptionLinear Actuator, 24 Vdc, Dynamic Load: 6.800 N (680,4 kg / 1.500 lbf), Ball Screw Drive, Max. 15 mm/s, Max. Stroke: 600 mm, Control: potentiometer, Front-Adapter: cross hole for 0.5 inch pin, Rear-Adapter: cross hole for 10 mm pin, Rear / front adapter hole position: both adapters at 90°, Connector option: no connector (flying leads)
Regular price $1,453.00 USDRegular priceUnit price per -
Electrak LA14 Linear Actuator DA24-21B65M60M0NPO-DEK
DescriptionLinear Actuator, 24 Vdc, Dynamic Load: 6.800 N (680,4 kg / 1.500 lbf), Ball Screw Drive, Max. 15 mm/s, Max. Stroke: 600 mm, Control: potentiometer, Front-Adapter: cross hole for 0.5 inch pin, Rear-Adapter: cross hole for 10 mm pin, Rear / front adapter hole position: both adapters at 0° (standard position), Connector option: no connector (flying leads)
Regular price $1,453.00 USDRegular priceUnit price per -
Electrak LA14 Linear Actuator DA24-21B65M60MFNPO-DEE
DescriptionLinear Actuator, 24 Vdc, Dynamic Load: 6.800 N (680,4 kg / 1.500 lbf), Ball Screw Drive, Max. 15 mm/s, Max. Stroke: 600 mm, Control: potentiometer, Front-Adapter: cross hole for 0.5 inch pin, Rear-Adapter: cross hole for 0.5 inch pin, Rear / front adapter hole position: both adapters at 90°, Connector option: no connector (flying leads)
Regular price $1,453.00 USDRegular priceUnit price per -
Electrak LA14 Linear Actuator DA24-21B65M60M0NPO-DEE
DescriptionLinear Actuator, 24 Vdc, Dynamic Load: 6.800 N (680,4 kg / 1.500 lbf), Ball Screw Drive, Max. 15 mm/s, Max. Stroke: 600 mm, Control: potentiometer, Front-Adapter: cross hole for 0.5 inch pin, Rear-Adapter: cross hole for 0.5 inch pin, Rear / front adapter hole position: both adapters at 0° (standard position), Connector option: no connector (flying leads)
Regular price $1,453.00 USDRegular priceUnit price per -
Electrak LA14 Linear Actuator DA24-21B65M60MFNPO-BMM
DescriptionLinear Actuator, 24 Vdc, Dynamic Load: 6.800 N (680,4 kg / 1.500 lbf), Ball Screw Drive, Max. 15 mm/s, Max. Stroke: 600 mm, Control: potentiometer, Front-Adapter: cross hole for 12 mm pin, Rear-Adapter: cross hole for 12 mm pin, Rear / front adapter hole position: both adapters at 90°, Connector option: Packard Electric 56 Series
Regular price $1,453.00 USDRegular priceUnit price per -
Electrak LA14 Linear Actuator DA24-21B65M60M0NPO-BMM
DescriptionLinear Actuator, 24 Vdc, Dynamic Load: 6.800 N (680,4 kg / 1.500 lbf), Ball Screw Drive, Max. 15 mm/s, Max. Stroke: 600 mm, Control: potentiometer, Front-Adapter: cross hole for 12 mm pin, Rear-Adapter: cross hole for 12 mm pin, Rear / front adapter hole position: both adapters at 0° (standard position), Connector option: Packard Electric 56 Series
Regular price $1,453.00 USDRegular priceUnit price per -
Electrak LA14 Linear Actuator DA24-21B65M60MFNPO-BMK
DescriptionLinear Actuator, 24 Vdc, Dynamic Load: 6.800 N (680,4 kg / 1.500 lbf), Ball Screw Drive, Max. 15 mm/s, Max. Stroke: 600 mm, Control: potentiometer, Front-Adapter: cross hole for 12 mm pin, Rear-Adapter: cross hole for 10 mm pin, Rear / front adapter hole position: both adapters at 90°, Connector option: Packard Electric 56 Series
Regular price $1,453.00 USDRegular priceUnit price per -
Electrak LA14 Linear Actuator DA24-21B65M60M0NPO-BMK
DescriptionLinear Actuator, 24 Vdc, Dynamic Load: 6.800 N (680,4 kg / 1.500 lbf), Ball Screw Drive, Max. 15 mm/s, Max. Stroke: 600 mm, Control: potentiometer, Front-Adapter: cross hole for 12 mm pin, Rear-Adapter: cross hole for 10 mm pin, Rear / front adapter hole position: both adapters at 0° (standard position), Connector option: Packard Electric 56 Series
Regular price $1,453.00 USDRegular priceUnit price per -
Electrak LA14 Linear Actuator DA24-21B65M60MFNPO-BME
DescriptionLinear Actuator, 24 Vdc, Dynamic Load: 6.800 N (680,4 kg / 1.500 lbf), Ball Screw Drive, Max. 15 mm/s, Max. Stroke: 600 mm, Control: potentiometer, Front-Adapter: cross hole for 12 mm pin, Rear-Adapter: cross hole for 0.5 inch pin, Rear / front adapter hole position: both adapters at 90°, Connector option: Packard Electric 56 Series
Regular price $1,453.00 USDRegular priceUnit price per -

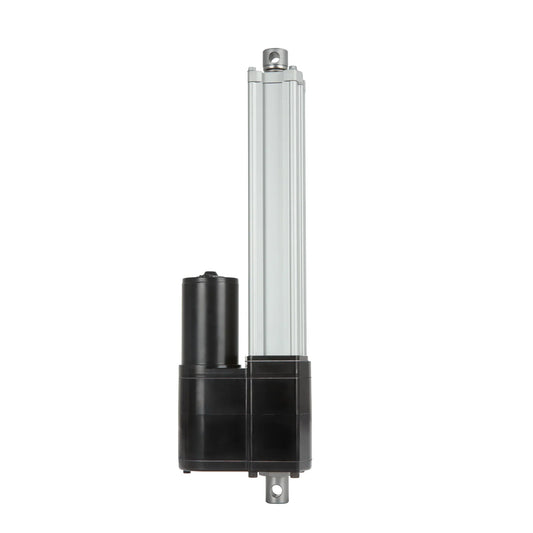

Electrak LA14 Linear Actuator DA24-21B65M60M0NPO-BME
DescriptionLinear Actuator, 24 Vdc, Dynamic Load: 6.800 N (680,4 kg / 1.500 lbf), Ball Screw Drive, Max. 15 mm/s, Max. Stroke: 600 mm, Control: potentiometer, Front-Adapter: cross hole for 12 mm pin, Rear-Adapter: cross hole for 0.5 inch pin, Rear / front adapter hole position: both adapters at 0° (standard position), Connector option: Packard Electric 56 Series
Regular price $1,453.00 USDRegular priceUnit price per -
Electrak LA14 Linear Actuator DA24-21B65M60MFNPO-BKM
DescriptionLinear Actuator, 24 Vdc, Dynamic Load: 6.800 N (680,4 kg / 1.500 lbf), Ball Screw Drive, Max. 15 mm/s, Max. Stroke: 600 mm, Control: potentiometer, Front-Adapter: cross hole for 10 mm pin, Rear-Adapter: cross hole for 12 mm pin, Rear / front adapter hole position: both adapters at 90°, Connector option: Packard Electric 56 Series
Regular price $1,453.00 USDRegular priceUnit price per -
Electrak LA14 Linear Actuator DA24-21B65M60M0NPO-BKM
DescriptionLinear Actuator, 24 Vdc, Dynamic Load: 6.800 N (680,4 kg / 1.500 lbf), Ball Screw Drive, Max. 15 mm/s, Max. Stroke: 600 mm, Control: potentiometer, Front-Adapter: cross hole for 10 mm pin, Rear-Adapter: cross hole for 12 mm pin, Rear / front adapter hole position: both adapters at 0° (standard position), Connector option: Packard Electric 56 Series
Regular price $1,453.00 USDRegular priceUnit price per -
Electrak LA14 Linear Actuator DA24-21B65M60MFNPO-BKK
DescriptionLinear Actuator, 24 Vdc, Dynamic Load: 6.800 N (680,4 kg / 1.500 lbf), Ball Screw Drive, Max. 15 mm/s, Max. Stroke: 600 mm, Control: potentiometer, Front-Adapter: cross hole for 10 mm pin, Rear-Adapter: cross hole for 10 mm pin, Rear / front adapter hole position: both adapters at 90°, Connector option: Packard Electric 56 Series
Regular price $1,453.00 USDRegular priceUnit price per -
Electrak LA14 Linear Actuator DA24-21B65M60M0NPO-BKK
DescriptionLinear Actuator, 24 Vdc, Dynamic Load: 6.800 N (680,4 kg / 1.500 lbf), Ball Screw Drive, Max. 15 mm/s, Max. Stroke: 600 mm, Control: potentiometer, Front-Adapter: cross hole for 10 mm pin, Rear-Adapter: cross hole for 10 mm pin, Rear / front adapter hole position: both adapters at 0° (standard position), Connector option: Packard Electric 56 Series
Regular price $1,453.00 USDRegular priceUnit price per
