Thomson Neff Industries GmbH

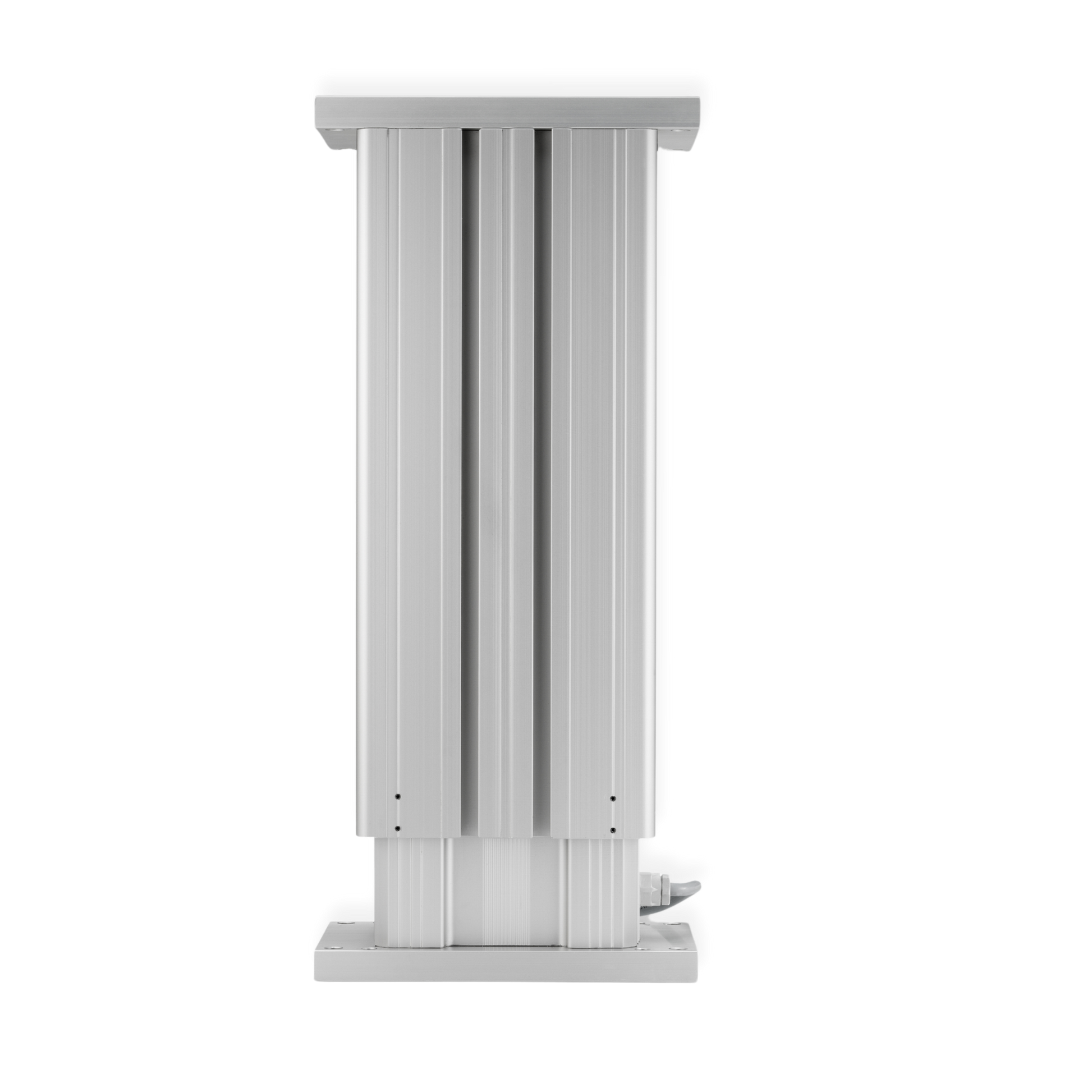

DMA Lifting Column DMA42-05A5-14

DMA Lifting Column DMA42-05A5-14

Lifting Column, DMA, Lead Screw Drive, 400 VAC, 14 in (355,6 mm) Stroke, 1100 N

$2,234.00 USD
$2,234.00 USD
Sale Sold out
No VAT is charged. Shipping calculated at checkout.

Delivery Time

⏱ Manufacturing time:
working days
📦 Estimated shipping time:
7-10 working days (United States)

* According to the manufacturer’s information – as of October 24, 2025. If you have any questions, feel free to contact us by email: info@sr-linear.com.

  • Self-supporting column in extruded anodized aluminium with high load torque capability
  • Dynami
  • Rugged, robust and strong
  • T-slot grooves along the entire profile
  • Maintenance free
View full details

Specifications

Product-Family Characteristics:
IP Rating, Static
IP45
Temperature Min
65 °C
Temperature Max
-25 °C
Anti-Rotation
yes
End Play, Max
1,0 mm
Cable Length
2000 mm
Special Connector
flying leads
Product Characteristics:
.
Certifications
CE
Nominal Stroke
355,6 mm [14 inch]
Weight
29.5 kg
Screw Type
Lead Screw Drive
Voltage
400 VAC

Dimension

Product Characteristics:
Nominal Stroke [S]
355,6 mm [14 inch]
Length [L]
633,6 mm (24,95 inch)

Performance

Product Characteristics:
Load, Static, Max
11350 N
Load, Dynamic
1100 N
Duty Cyle
25%
Travel Rate @ Full Load
32 mm/s
Travel Rate @ No Load
54 mm/s
