Electrak HD Linear Actuator HD12B017-0100ELP[1|2|3]AEMD

Electrak HD Linear Actuator HD12B017-0100ELP[1|2|3]AEMD

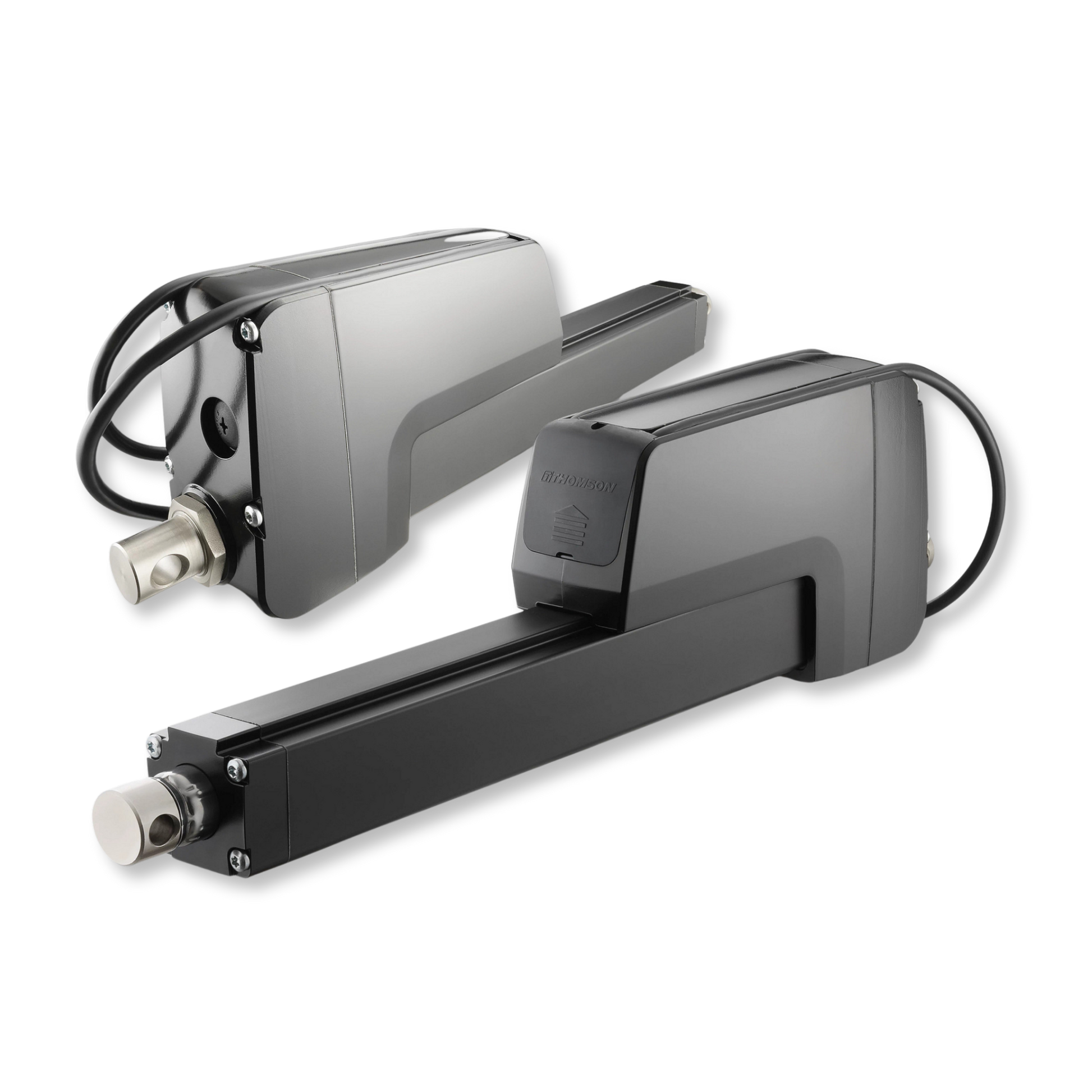

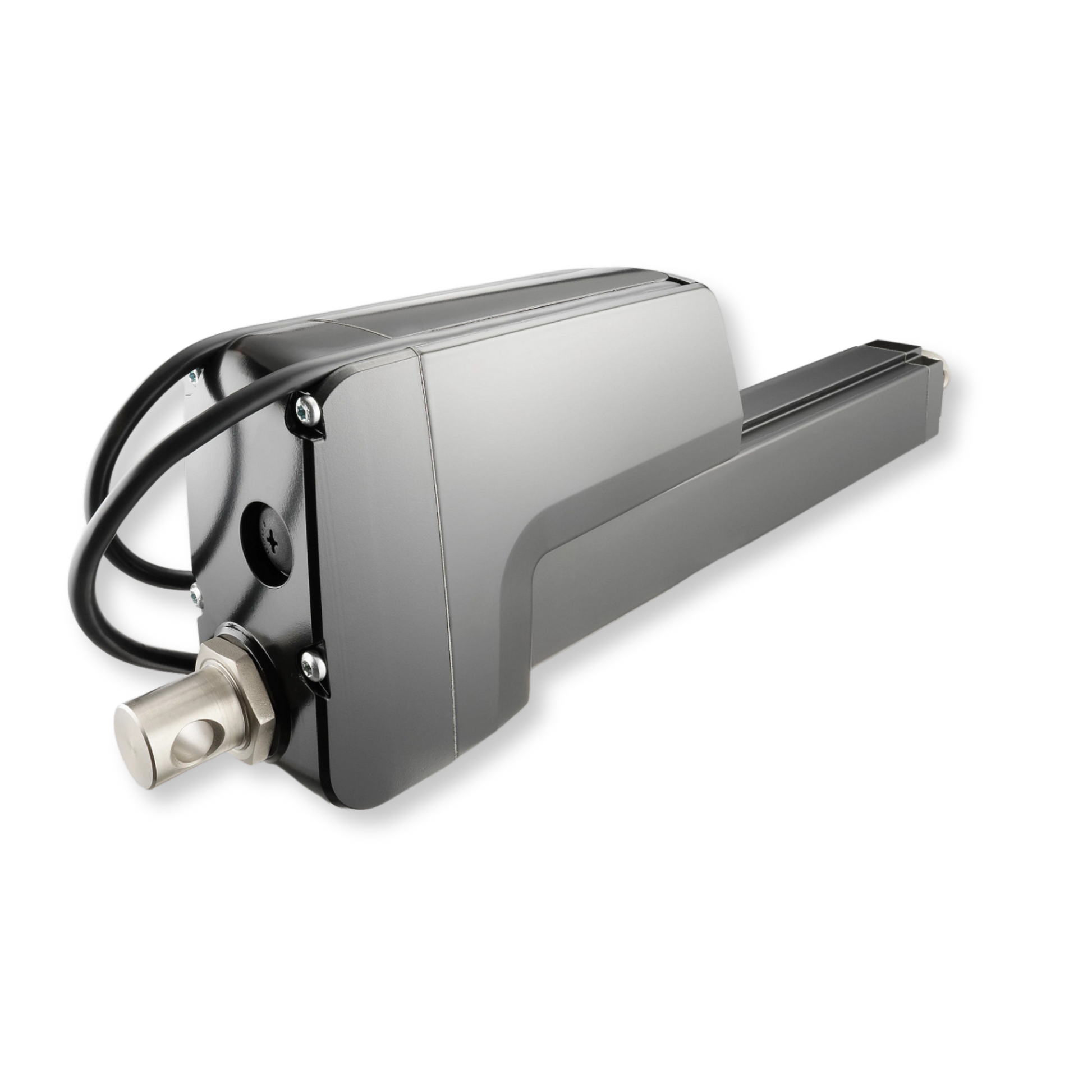

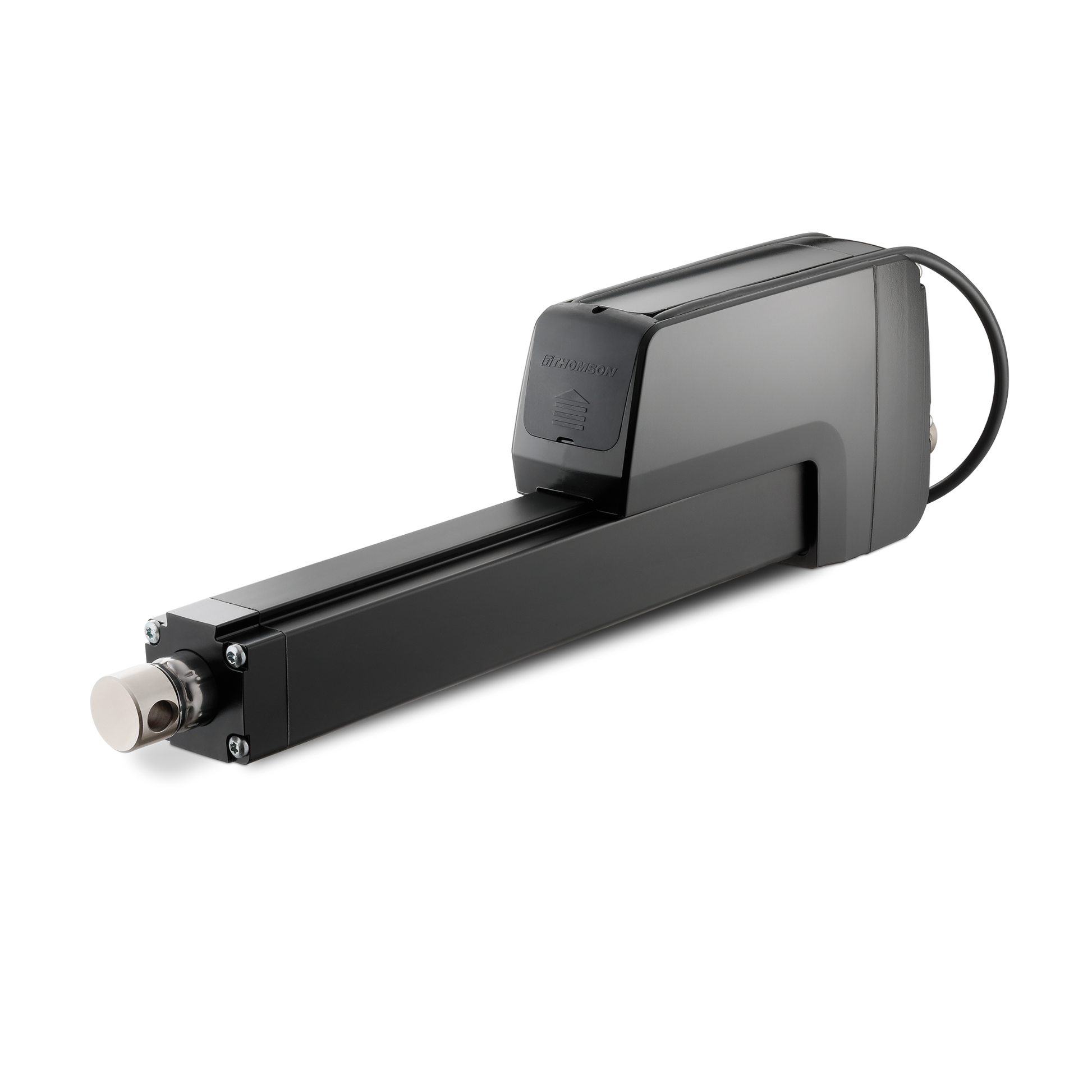

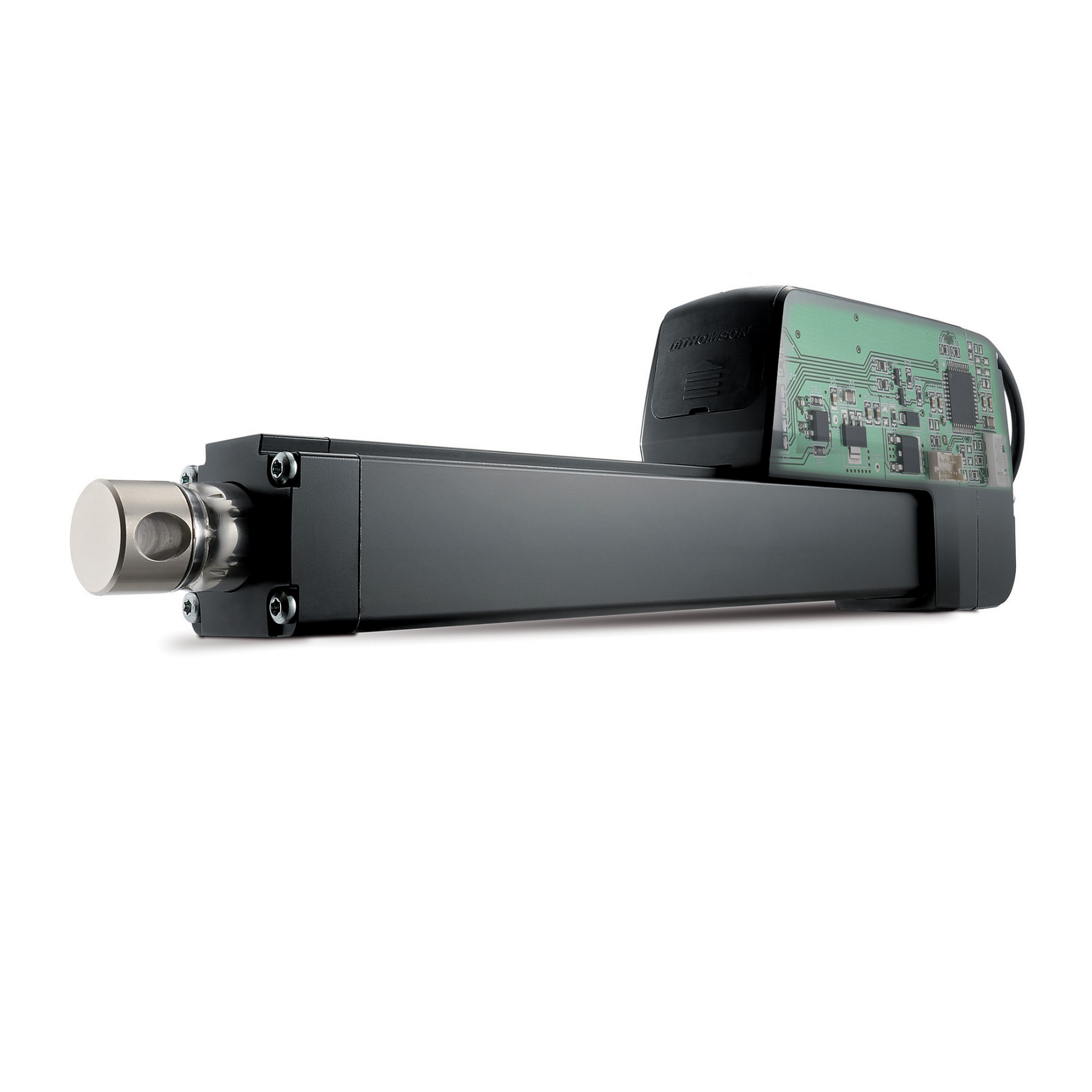

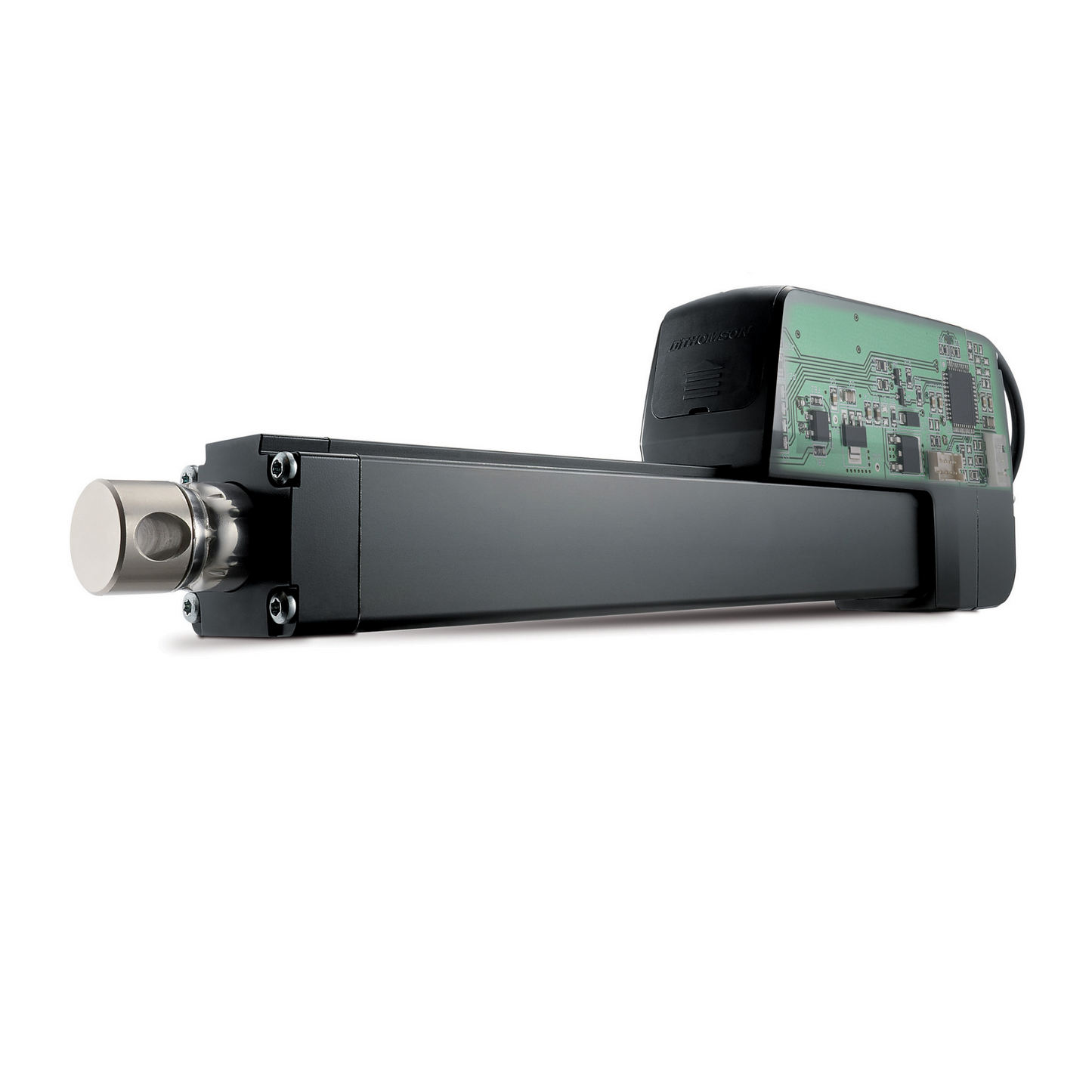

Electrak HD Linear Actuator, 12 VDC, Dynamic Load: 1.700 N, Max. Stroke: 100 mm, Control: ELP = Electronic Monitoring Package + end-of-stroke indication output + analog (potentiometer) position output, Rear-Adapter: Rear mounting flange, Front-Adapter: Cross hole for ½ inch pin, Adapter 90° turned
Partnumber related to selected cable length: 0,3 m HD12B017-0100ELP1AEMD - 1,5 m HD12B017-0100ELP2AEMD - 5 m HD12B017-0100ELP3AEMD
$848.00 USD
$848.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Delivery Time

⏱ Manufacturing time:
25 working days
📦 Estimated shipping time:
7-10 working days (United States)

* You can request a faster manufacturing time for small orders at info@sr-linear.com.

  • Electrak® HD – Premium linear actuator: more power, longer stroke

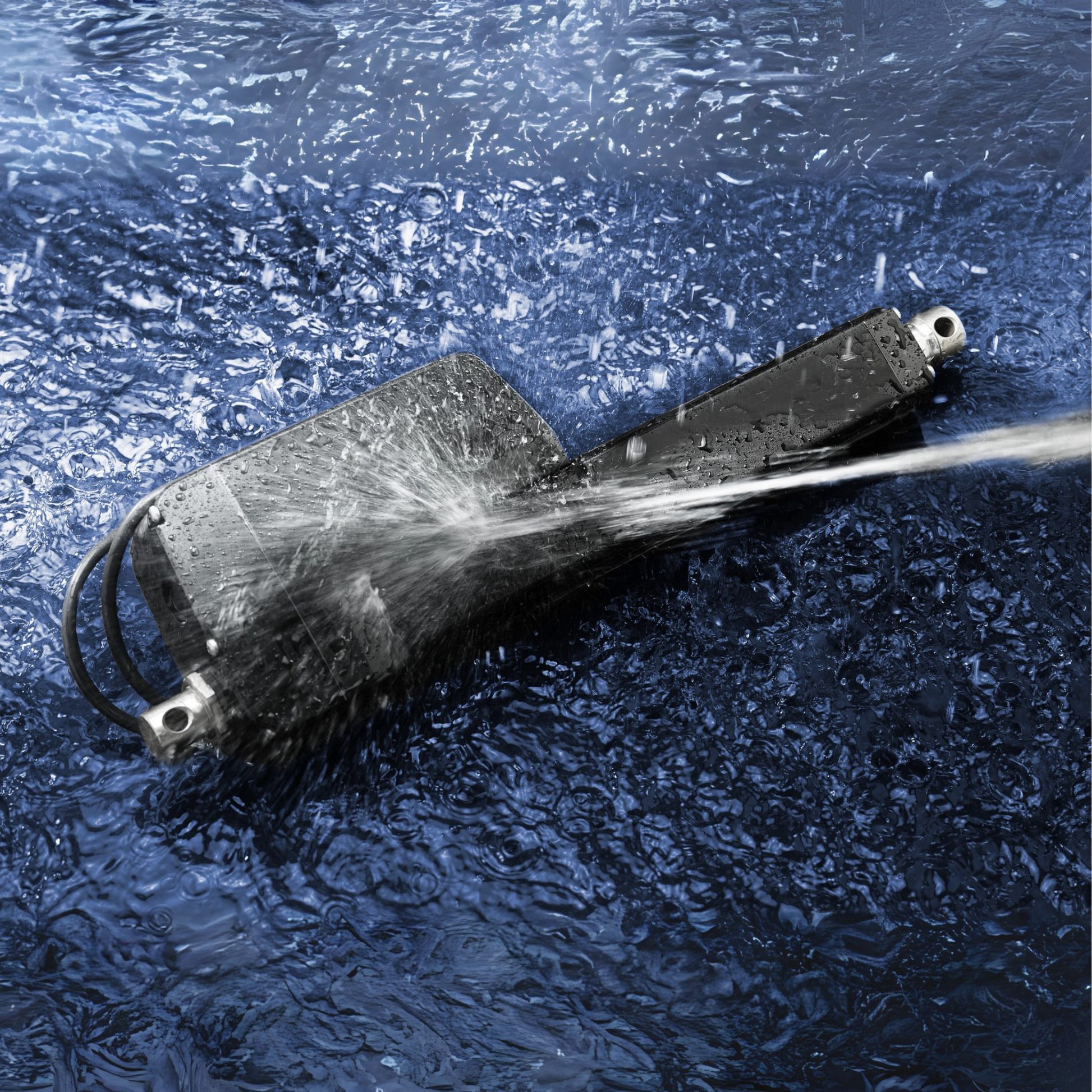

  • Maximum protection against environmental influences: IP69K (static), IP67 (static), and IP66 (dynamic) – proven to withstand the toughest conditions.
  • Tested for 200 hours in salt spray environment.
  • Certified according to CE, RoHS, and REACH (EU).
  • Integrated manual override.
  • Standard anti-rotation piston rod.
  • Built-in thermal overload protection.
View full details

Specifications

Product-Family Characteristics:
IP Rating, Static
IP67 / IP69K
IP Rating, Dynamic
IP66
Screw Type
Ball Screw Drive
Temperature Min
-40 °C
Temperature Max
85 °C
Anti-Rotation
Yes
Brake
Built-in dynamic braking
End Play, Max
1.200 mm
Material
Zinc alloy, Aluminum, Stainless Steel
Temperature Monitoring
Yes
Certifications
CE
Restraining Torque
0 Nm
Integrated Motor Control
Yes
Electronic Load Monitoring
Yes
Contains Liquids
No
Returnable
No
Manual Override
Yes
Special Connector
Flying leads
Product Characteristics:
.
Electrak Modular Control System options
ELP = Electronic Monitoring Package + end-of-stroke indication output + analog (potentiometer) position output
Protection, End of Stroke
End of Stroke
Protection, Mid Stroke
Electronic Load Monitoring
Feedback
Potentiometer, End of Stroke
Nominal Stroke
100 mm
Front Adapter Option
Cross hole for ½ inch pin
Rear Adapter Option
Rear mounting flange
Adapter Orientation
90° turned
Voltage Tolerance
9-16 VDC
Weight
6.5 kg
Voltage
12 VDC
Cable Length
0,3 m HD12B017-0100ELP1AEMD
1,5 m HD12B017-0100ELP2AEMD
5 m HD12B017-0100ELP3AEMD

Dimension

Product Characteristics:
Nominal Stroke [S]
100 mm
Dimension [A]
268.4 mm
Dimension [B1]
7.8 mm
Dimension [B2]
0 mm
Dimension [B3]
95 mm
Dimension [B4]
6.6 mm
Dimension [C1]
17.5 mm
Dimension [C2]
10.9 mm
Dimension [C3]
30.2 mm
Dimension [Ltot total]
276.2 mm

Performance

Product Characteristics:
Load, Static, Max
18.000 N
Load, Dynamic
1.700 N
Duty Cyle
25%
Current Draw @ no load/max. Load
3/18 amp
Salt Spray Resistance
500 hrs
Max. Speed
71 mm/s
Min. Speed
58 mm/s
