Thomson Neff Industries GmbH

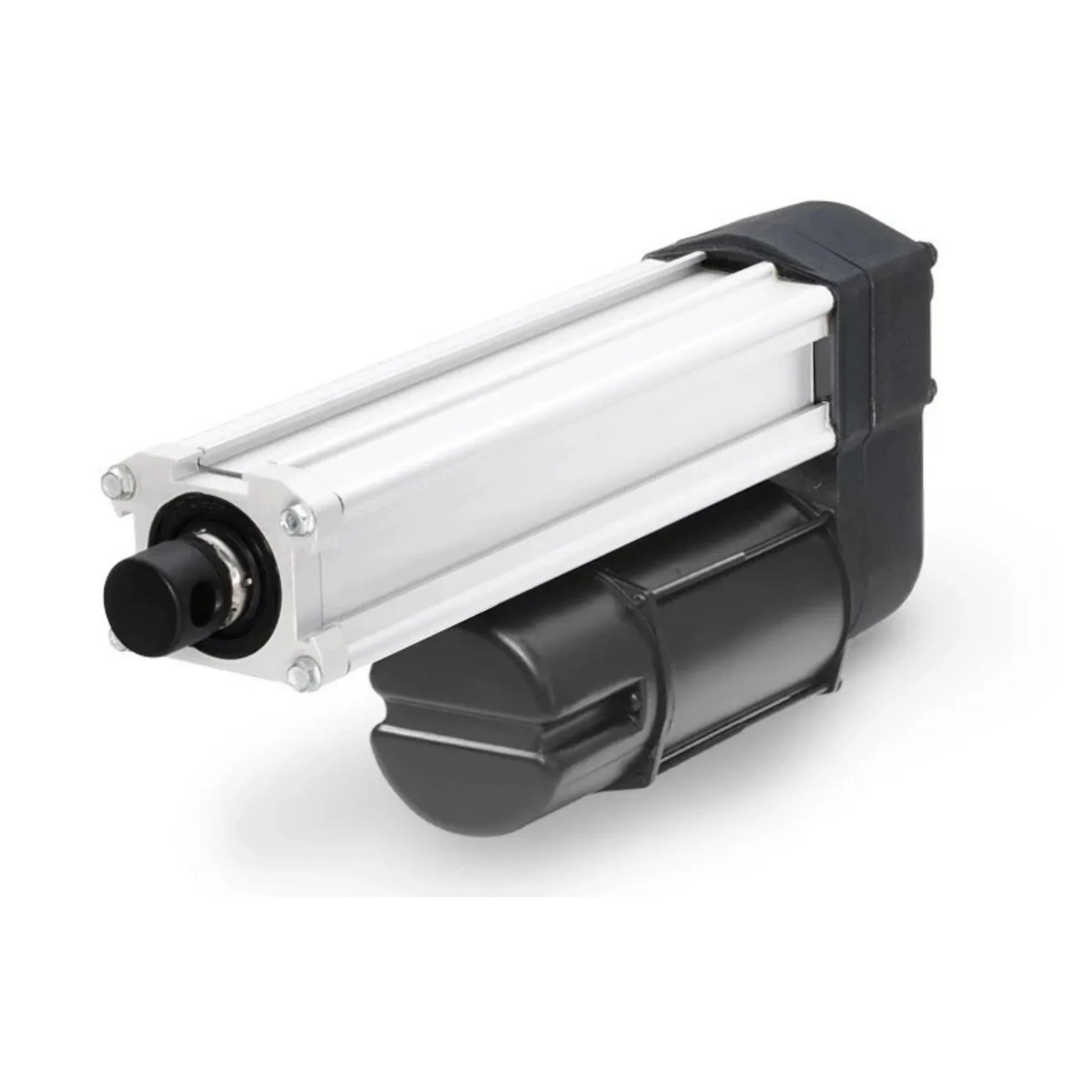

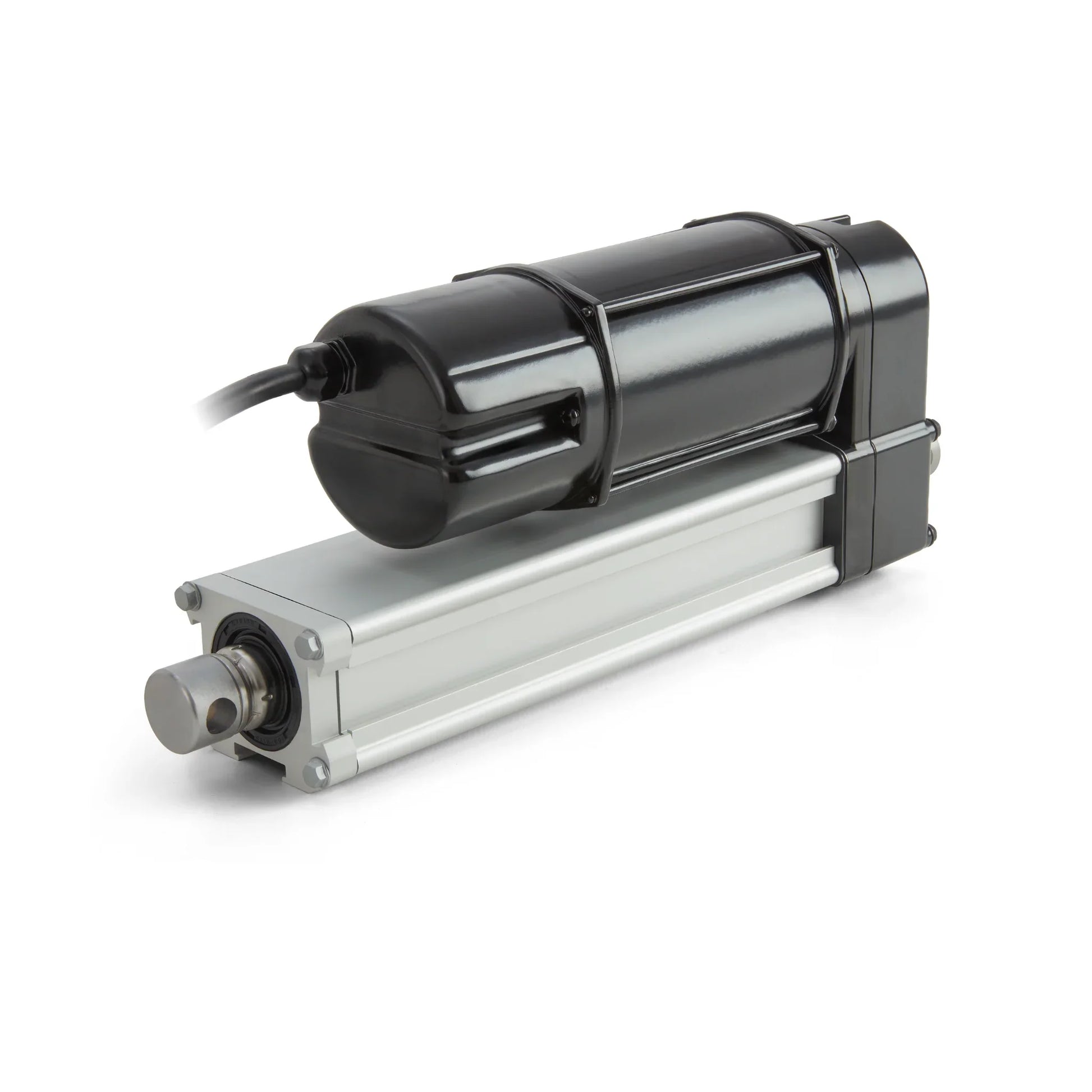

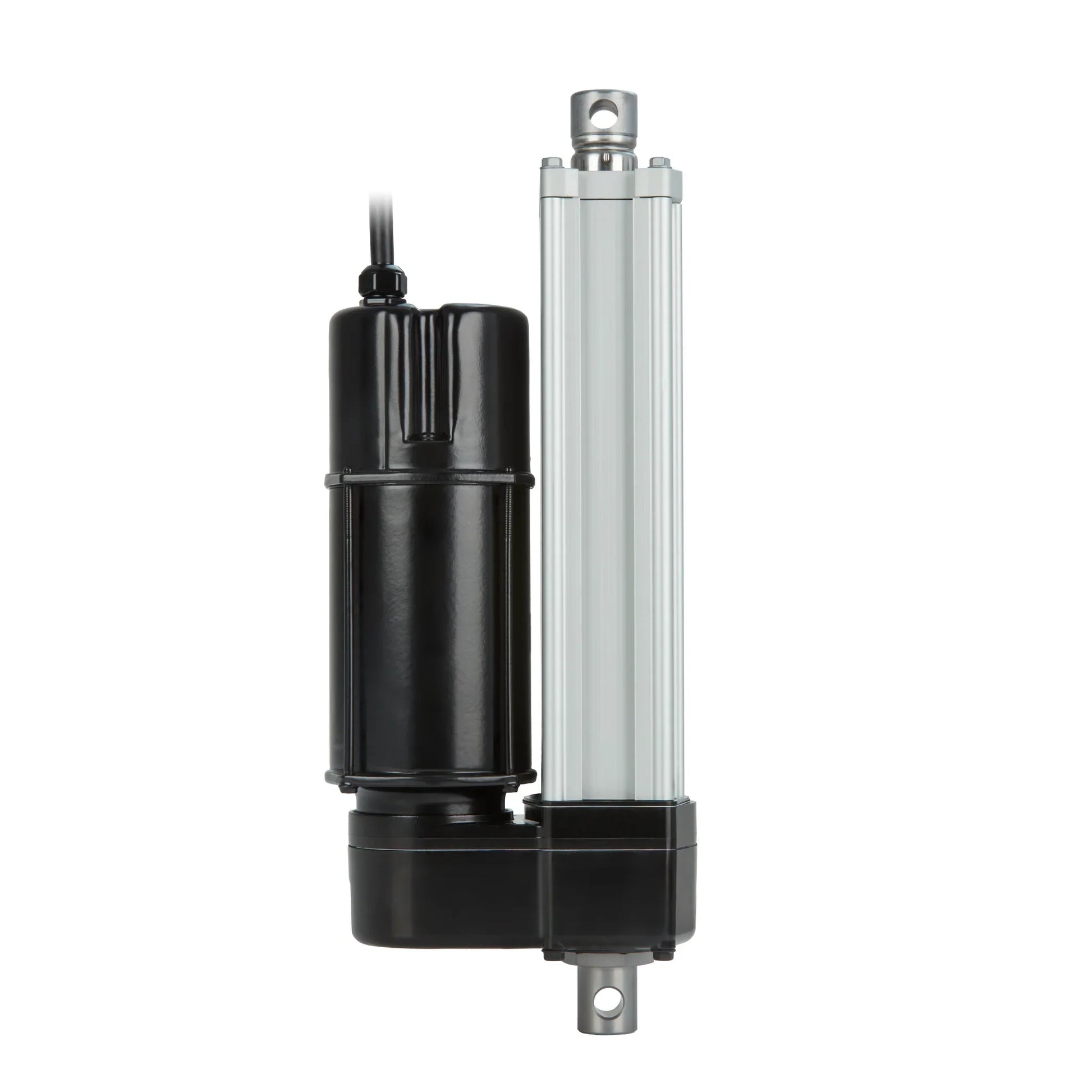

Electrak LA24 Linear Actuator AA42-20B65M60M0BHW-DGK

Electrak LA24 Linear Actuator AA42-20B65M60M0BHW-DGK

Linear Actuator, 400 Vac, Dynamic Load: 2.250 N (229,5 kg / 506 lbf), Ball Screw Drive, Max. 15 mm/s, Max. Stroke: 600 mm, Control: anti-coast brake and manual override, Front-Adapter: 1/2-20 UNF 2B female thread, Rear-Adapter: cross hole for 10 mm pin, Rear / front adapter hole position: both adapters at 0° (standard position)
$1,983.00 USD
$1,983.00 USD
Sale Sold out
All prices exclude tax. Shipping calculated at checkout.

Delivery Time

⏱ Manufacturing time:
working days
📦 Estimated shipping time:
7-10 working days (United States)

* According to the manufacturer’s information – as of October 24, 2025. If you have any questions, feel free to contact us by email: info@sr-linear.com.

  • Robust, strong and reliable
  • Corrosion free aluminium cover tube
  • Stainless steel extension tube
  • Withstands very harsh environments
  • Trunnion mounting possible
  • Overload clutch for mid and end of stroke protection
  • T-slot grooves in the cover tube for magnetic sensors
  • Heavy duty motor with thermal
View full details

Specifications

Product-Family Characteristics:
IP Rating, Static
IP65
Temperature Min
-25 °C / -13 °F
Temperature Max
65 °C / 149 °F
Anti-Rotation
yes
End Play, Max
1,0 mm / 0,039 in
Material
Stainless Steel, Aluminum, Zinc
Certifications
CE, UL, CSA
Restraining Torque
0 Nm
Special Connector
Flying Leads
Product Characteristics:
.
Temperature Min
-25 °C
Temperature Max
86 °C
Certifications
CE, UL, CSA
Feedback
Anti-coast brake and manual override
Nominal Stroke
600 mm
Front Adapter Option
1/2-20 UNF 2B female thread
Rear Adapter Option
Cross hole for 10 mm pin
Rear / Front Adapter Hole Position
Both adapters at 0° (standard position)
End Play, Max
1,0 mm
Weight
9.1 kg
Screw Type
Ball Screw Drive
Voltage
400 Vac
Special Connector
Flying Leads

Dimension

Product Characteristics:
Nominal Stroke [S]
600 mm
Dimension [A]
873.4 mm

Performance

Product Characteristics:
Load, Static, Max
18.000 N
Load, Dynamic
2.250 N (229,5 kg / 506 lbf)
Duty Cyle
25%
Current Draw @ no load/max. Load
0,38 / 0,50 [A]
Salt Spray Resistance
96 hrs
Max. Speed
15 mm/s
Min. Speed
12 mm/s
