Thomson Neff Industries GmbH

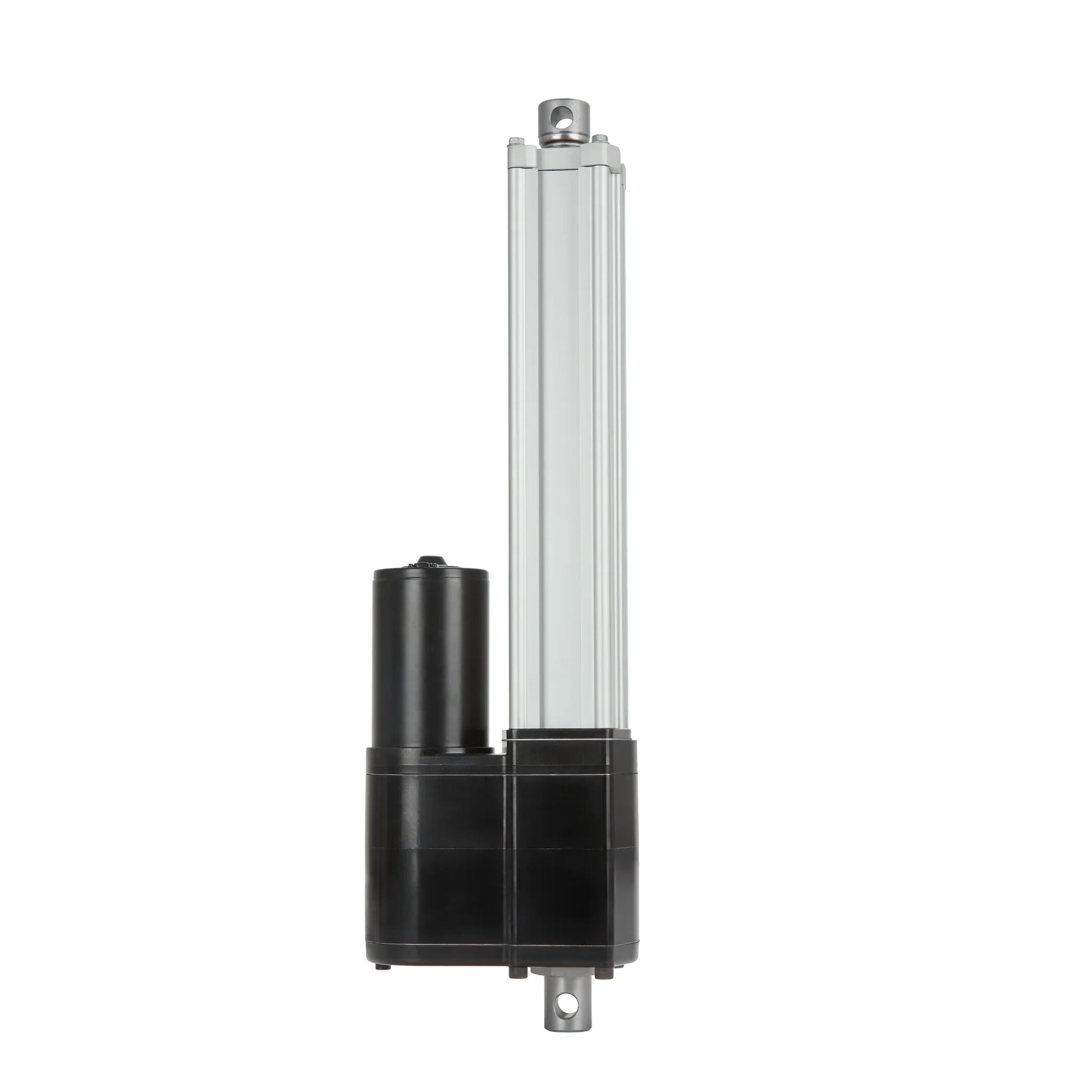

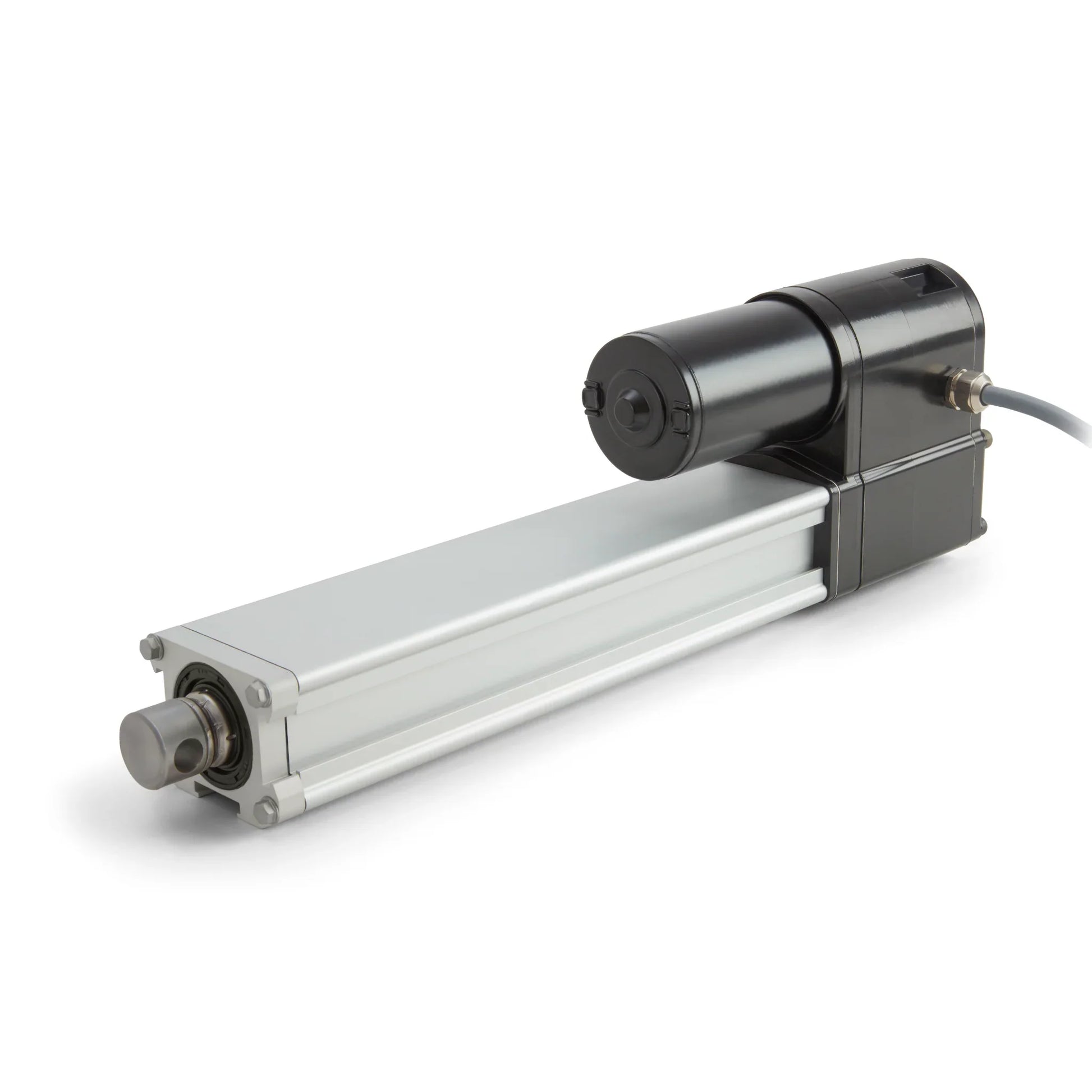

Electrak LA14 Linear Actuator DA36-20A65M20M0NPO-AMK

Electrak LA14 Linear Actuator DA36-20A65M20M0NPO-AMK

Linear Actuator, 36 Vdc, Dynamic Load: 2.250 N (226,8 kg / 500 lbf), Acme Screw, Max. 15 mm/s, Max. Stroke: 200 mm, Control: potentiometer, Front-Adapter: cross hole for 12 mm pin, Rear-Adapter: cross hole for 10 mm pin, Rear / front adapter hole position: both adapters at 0° (standard position), Connector option: AMP terminal 42098-2, house 180908-5
$795.00 USD
$795.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Delivery Time

⏱ Manufacturing time:
25 working days
📦 Estimated shipping time:
7-10 working days (United States)

* According to the manufacturer’s information – as of October 24, 2025. If you have any questions, feel free to contact us by email: info@sr-linear.com.

  • Rugged and robust
  • Withstands very harsh environments
  • Stainless steel extension tube
  • Corrosion free aluminium cover tube
  • Trunnion mounting possible
  • Overload clutch for mid and end of stroke protection
  • T-slot grooves in the cover tube for magnetic sensors
  • Motor with thermal switch
View full details

Specifications

Product-Family Characteristics:
IP Rating, Static
IP65
Temperature Min
-25 °C / -15 °F
Temperature Max
85 °C / 185 °F
Anti-Rotation
yes
End Play, Max
1,0 mm / 0,039 in
Material
Stainless Steel, Aluminum, Zinc
Certifications
CE
Restraining Torque
0 Nm
Product Characteristics:
.
Feedback
Potentiometer
Nominal Stroke
200 mm
Front Adapter Option
Cross hole for 12 mm pin
Rear Adapter Option
Cross hole for 10 mm pin
Rear / Front Adapter Hole Position
Both adapters at 0° (standard position)
Weight
6.4 kg
Screw Type
Acme Screw
Voltage
36 Vdc
Special Connector
AMP terminal 42098-2, house 180908-5

Dimension

Product Characteristics:
Nominal Stroke [S]
200 mm
Dimension [A]
424.9 mm

Performance

Product Characteristics:
Load, Static, Max
11.350 N
Load, Dynamic
2.250 N (226,8 kg / 500 lbf)
Duty Cyle
25%
Current Draw @ no load/max. Load
contact_customer_support
Salt Spray Resistance
96 hrs
Max. Speed
15 mm/s
Min. Speed
12 mm/s
