Thomson Neff Industries GmbH

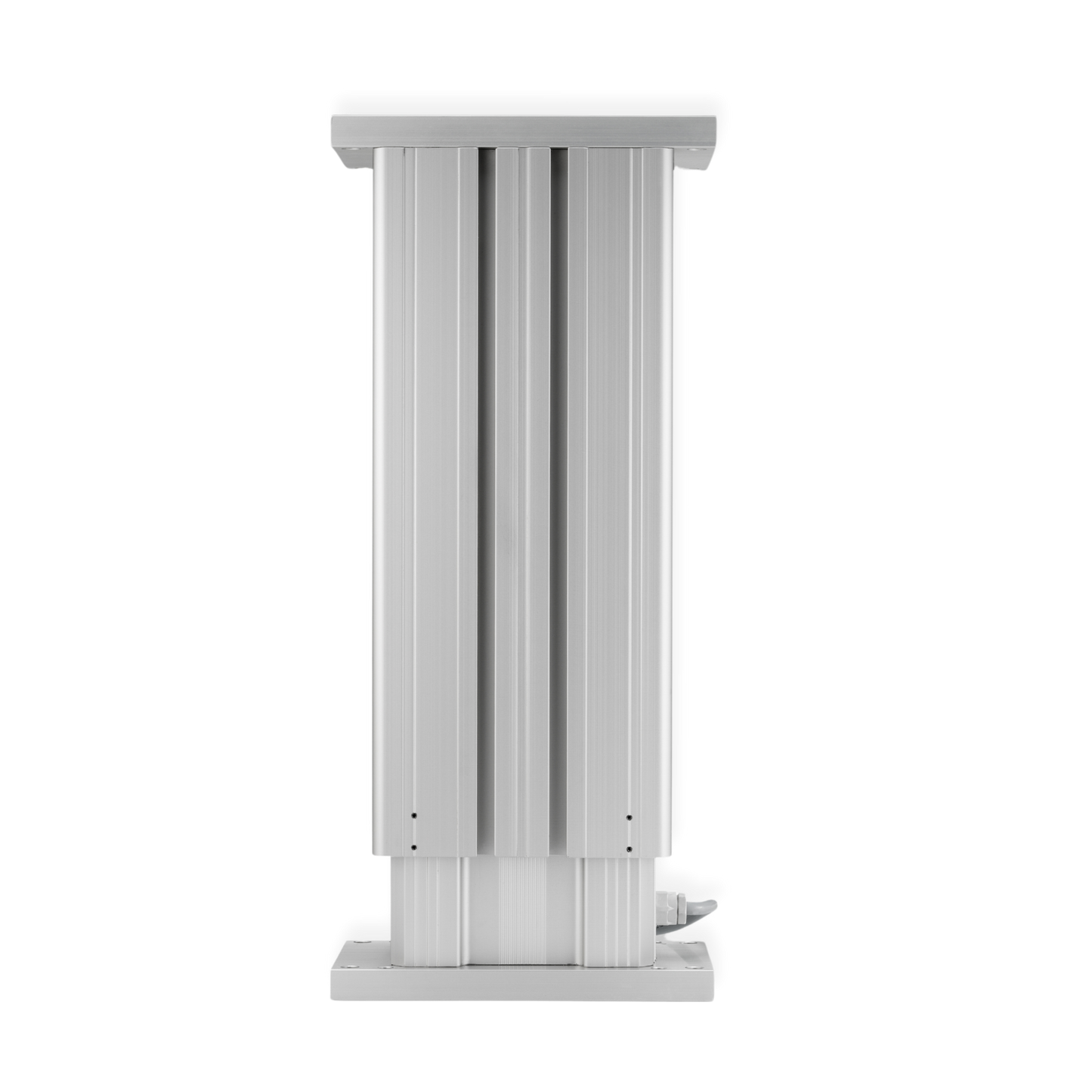

DMHD Lifting Column DMHD12-B017-0100-LLX-1

DMHD Lifting Column DMHD12-B017-0100-LLX-1

Lifting Column DMHD, Ball Screw Drive, 12 VDC, Stroke: 100 mm [3,94 inch], Dynamic Load: 1700 N, LLX = Electrak Monitoring Package only + Low-Level Signal Motor Switching + End-of-Stroke Indication Output, 1,5 m long cable with flying leads

$1,832.00 USD
$1,832.00 USD
Sale Sold out
All prices exclude tax. Shipping calculated at checkout.

Delivery Time

⏱ Manufacturing time:
working days
📦 Estimated shipping time:
7-10 working days (United States)

* According to the manufacturer’s information – as of October 24, 2025. If you have any questions, feel free to contact us by email: info@sr-linear.com.

  • Self-supporting column in extruded anodized aluminium with high load torque capability
  • Rugged, robust and strong
  • T-slot grooves along the entire profile
  • Maintenance free
View full details

Specifications

Product-Family Characteristics:
IP Rating, Static
IP 65
Screw Type
Ball Screw Drive
Temperature Min
-40 °C
Temperature Max
85 °C
Anti-Rotation
yes
End Play, Max
1,2 mm
Product Characteristics:
.
Electrak Modular Control System options
LLX = Electronic Monitoring Package + low-level signal motor switching + end-of-stroke indication output
Certifications
CE
Nominal Stroke
100 mm [3,94 inch]
Weight
21.8 kg
Voltage
12 VDC
Cable Length
1,5 m
Special Connector
Flying Leads

Dimension

Product Characteristics:
Nominal Stroke [S]
100 mm [3,94 inch]
Length [L]
357 mm [14,1 inch]

Performance

Product Characteristics:
Load, Static, Max
18000 N
Load, Dynamic
1700 N
Duty Cyle
25%
Travel Rate @ Full Load
58 mm/s
Travel Rate @ No Load
71 mm/s
