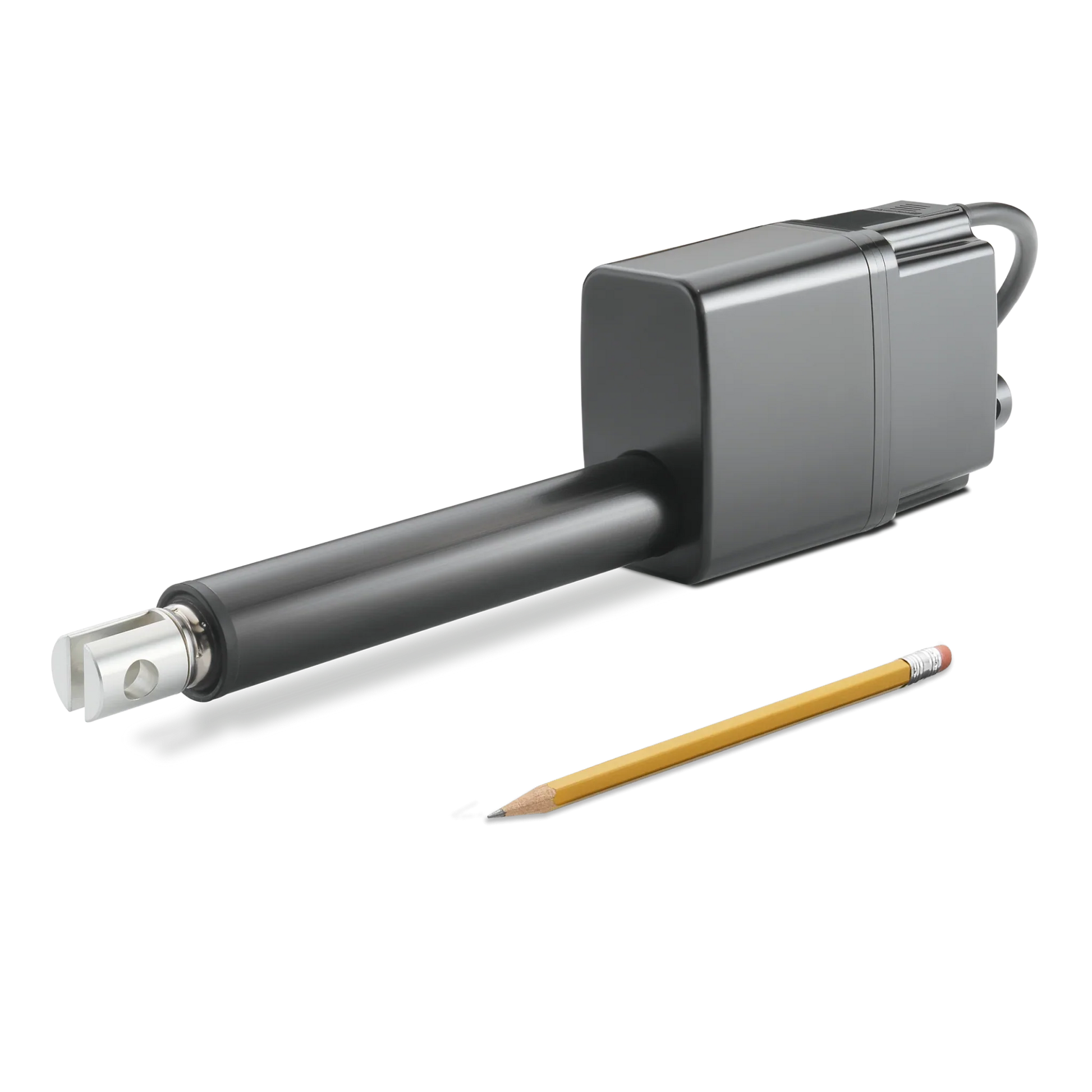

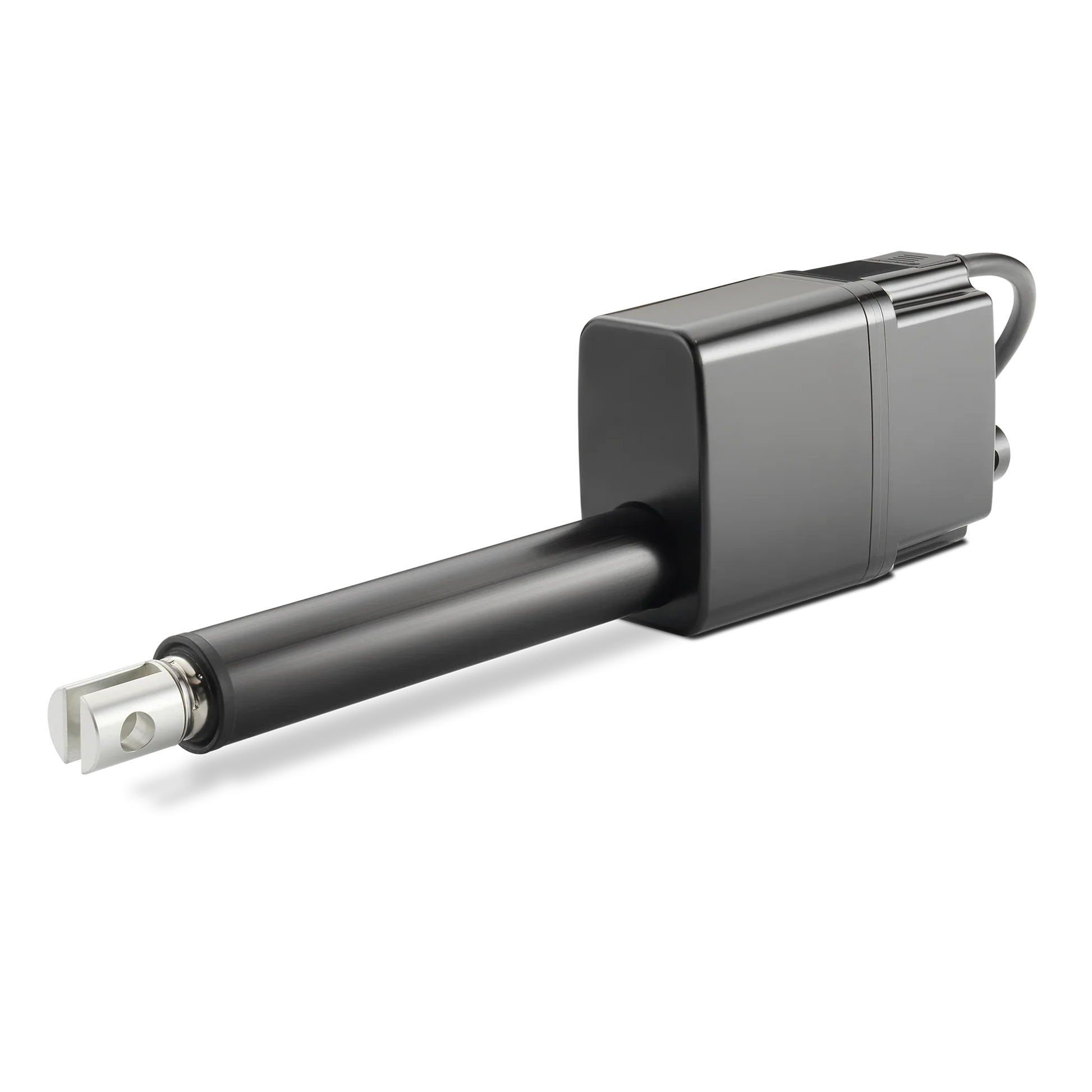

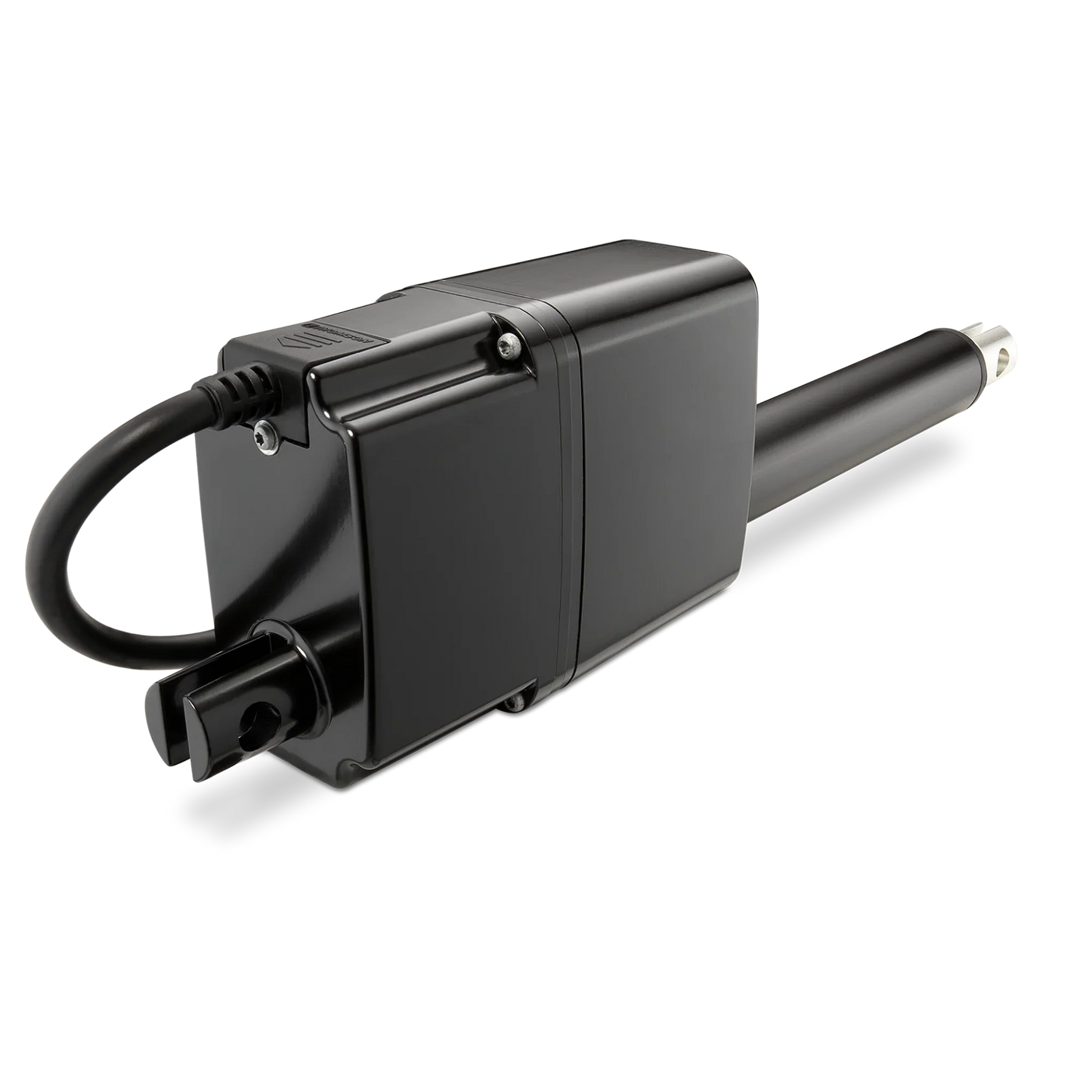

Electrak MD Thomson MD12A025-0050XXX1NNSD Linear Actuator

Electrak MD Thomson MD12A025-0050XXX1NNSD Linear Actuator

Linear Actuator, 12 VDC, Dynamic Load: 250 N (56 lbs), Acme, Max Stroke: 50 mm, Control: XXX = internal end-of-stroke limit switches, 0,3 m Cable with Fyling Leads, Standard Adapterorientation
$289.00 USD
$289.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Manufacturing time:
25 working days*
*You can request a faster manufacturing time for small orders.
  • Advanced onboard controls, including J1939 CAN Bus
  • Compact and power-dense
  • Robust and tested to industry standards, including IP66, IP67, IP69K as well as 500 hour salt spray
View full details

Specifications

Product-Family Characteristics:
IP Rating, Static
IP67/IP69K
IP Rating, Dynamic
IP66
Screw Type
acme
Temperature Min
-40 °C / -40 °F
Temperature Max
85 °C / 185 °F
Anti-Rotation
yes
End Play, Max
1,2 mm / 0,047 in
Certifications
CE, RoHs, REACH, ISO 13766
Restraining Torque
0 Nm
Manual Override
no
Warranty
12 months
Special Connector
fyling leads
Product Characteristics:
.
Electrak Modular Control System options
XXX = internal end-of-stroke limit switches
Protection, End of Stroke
End of Stroke
Protection, Mid Stroke
n/a
Nominal Stroke
50 mm
Front Adapter Option
Forked cross hole for 12 mm pin
Rear Adapter Option
Forked cross hole for 12 mm pin
Adapter Orientation
Standard
Weight
1.1 kg
Voltage
12 VDC
Cable Length
0,3 m

Dimension

Product Characteristics:
Nominal Stroke [S]
50 mm
Dimension [A]
183.2 mm
Dimension [Ltot total]
206.6 mm

Performance

Product Characteristics:
Load, Static, Max
250 N
Load, Dynamic
250 N (56 lbs)
Duty Cyle
0.25
Current Draw @ no load/max. Load
1,2 / 5,2 amp
Max. Speed
52 mm/s
Min. Speed
43.8 mm/s
