Collection: Electrak XD Linear Actuator
Ushering in the next evolution of electric actuators, the Thomson Electrak XD is strong enough to take on hydraulic applications while, at the same time, be smarter, smaller and more efficient than competitive technologies. On top of its strength (up to 25,000 N loads), the XD offers extensive protection against even the harshest conditions and ingress, and features enhanced controllability and diagnostics via onboard controls
-
LXX = low-level signal motor switching + speed control + force feedback output
Electrak XD - LXX (Standard)selected -
LXP = LXX + position feedback output
Electrak XD - LXP -
LLX = LXX + end-of-stroke indication outputs
Electrak XD - LLX -
LLP = LXX + position feedback output + end-of-stroke indication outputs
Electrak XD - LLP -
PLS = LXX + position feedback output + programmable end-ofstroke limits
Electrak XD - PLS -
COO = CANopen® + closed loop speed control (includes diagnostics, position feedback, overload indication plus static and dynamic force feedback)
Electrak XD - COO -
CNO = CAN bus SAE J1939 + closed loop speed control (includes diagnostics, position feedback, overload indication plus static and dynamic force feedback)
Electrak XD - CNO
-

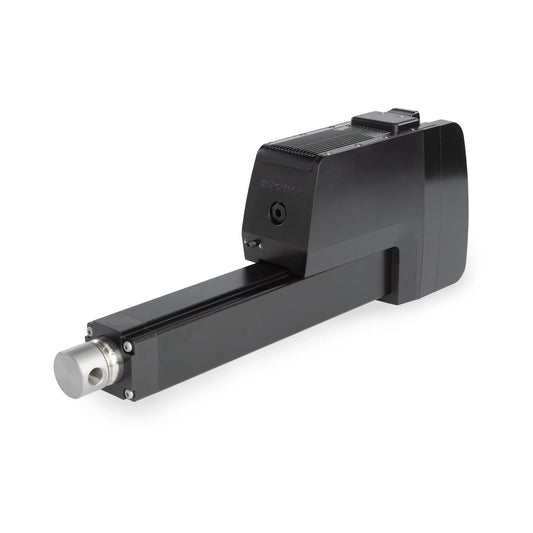

Electrak XD Linear Actuator XD48B250-0600LXXRMP[S|M]M
DescriptionElectrak XD Linear Actuator, 48 VDC, Dynamic Load: 25.000 N (16 mm/s), Max. Stroke: 600 mm, Control: LXX = low-level signal motor switching + speed control + force feedback output, manual brake release and override, Rear-Adapter: 16 mm cross hole, Front-Adapter: M20 × 1.5 female thread, with dampening
Regular price $2,919.00 USDRegular priceUnit price per -
Electrak XD Linear Actuator XD48B250-0600LXXRMH[S|M]M
DescriptionElectrak XD Linear Actuator, 48 VDC, Dynamic Load: 25.000 N (16 mm/s), Max. Stroke: 600 mm, Control: LXX = low-level signal motor switching + speed control + force feedback output, manual brake release and override, Rear-Adapter: 16 mm cross hole, Front-Adapter: M20 × 1.5 male thread, with dampening
Regular price $2,919.00 USDRegular priceUnit price per -
Electrak XD Linear Actuator XD48B250-0600LXXRMN[S|M]M
DescriptionElectrak XD Linear Actuator, 48 VDC, Dynamic Load: 25.000 N (16 mm/s), Max. Stroke: 600 mm, Control: LXX = low-level signal motor switching + speed control + force feedback output, manual brake release and override, Rear-Adapter: 16 mm cross hole, Front-Adapter: 16 mm forked cross hole, with dampening
Regular price $2,919.00 USDRegular priceUnit price per -
Electrak XD Linear Actuator XD48B250-0600LXXRMM[S|M]M
DescriptionElectrak XD Linear Actuator, 48 VDC, Dynamic Load: 25.000 N (16 mm/s), Max. Stroke: 600 mm, Control: LXX = low-level signal motor switching + speed control + force feedback output, manual brake release and override, Rear-Adapter: 16 mm cross hole, Front-Adapter: 16 mm cross hole, with dampening
Regular price $2,919.00 USDRegular priceUnit price per -
Electrak XD Linear Actuator XD48B250-0600LXXRKP[S|M]N
DescriptionElectrak XD Linear Actuator, 48 VDC, Dynamic Load: 25.000 N (16 mm/s), Max. Stroke: 600 mm, Control: LXX = low-level signal motor switching + speed control + force feedback output, manual brake release and override, Rear-Adapter: force feedback sensor with 16 mm cross hole, Front-Adapter: M20 × 1.5 female thread, no dampening
Regular price $3,308.00 USDRegular priceUnit price per -
Electrak XD Linear Actuator XD48B250-0600LXXRKH[S|M]N
DescriptionElectrak XD Linear Actuator, 48 VDC, Dynamic Load: 25.000 N (16 mm/s), Max. Stroke: 600 mm, Control: LXX = low-level signal motor switching + speed control + force feedback output, manual brake release and override, Rear-Adapter: force feedback sensor with 16 mm cross hole, Front-Adapter: M20 × 1.5 male thread, no dampening
Regular price $3,308.00 USDRegular priceUnit price per -
Electrak XD Linear Actuator XD48B250-0600LXXRKN[S|M]N
DescriptionElectrak XD Linear Actuator, 48 VDC, Dynamic Load: 25.000 N (16 mm/s), Max. Stroke: 600 mm, Control: LXX = low-level signal motor switching + speed control + force feedback output, manual brake release and override, Rear-Adapter: force feedback sensor with 16 mm cross hole, Front-Adapter: 16 mm forked cross hole, no dampening
Regular price $3,308.00 USDRegular priceUnit price per -
Electrak XD Linear Actuator XD48B250-0600LXXRKM[S|M]N
DescriptionElectrak XD Linear Actuator, 48 VDC, Dynamic Load: 25.000 N (16 mm/s), Max. Stroke: 600 mm, Control: LXX = low-level signal motor switching + speed control + force feedback output, manual brake release and override, Rear-Adapter: force feedback sensor with 16 mm cross hole, Front-Adapter: 16 mm cross hole, no dampening
Regular price $3,308.00 USDRegular priceUnit price per -
Electrak XD Linear Actuator XD48B250-0600LXXRHP[S|M]N
DescriptionElectrak XD Linear Actuator, 48 VDC, Dynamic Load: 25.000 N (16 mm/s), Max. Stroke: 600 mm, Control: LXX = low-level signal motor switching + speed control + force feedback output, manual brake release and override, Rear-Adapter: M20 × 1.5 male thread, Front-Adapter: M20 × 1.5 female thread, no dampening
Regular price $2,789.00 USDRegular priceUnit price per -
Electrak XD Linear Actuator XD48B250-0600LXXRHH[S|M]N
DescriptionElectrak XD Linear Actuator, 48 VDC, Dynamic Load: 25.000 N (16 mm/s), Max. Stroke: 600 mm, Control: LXX = low-level signal motor switching + speed control + force feedback output, manual brake release and override, Rear-Adapter: M20 × 1.5 male thread, Front-Adapter: M20 × 1.5 male thread, no dampening
Regular price $2,789.00 USDRegular priceUnit price per -
Electrak XD Linear Actuator XD48B250-0600LXXRHN[S|M]N
DescriptionElectrak XD Linear Actuator, 48 VDC, Dynamic Load: 25.000 N (16 mm/s), Max. Stroke: 600 mm, Control: LXX = low-level signal motor switching + speed control + force feedback output, manual brake release and override, Rear-Adapter: M20 × 1.5 male thread, Front-Adapter: 16 mm forked cross hole, no dampening
Regular price $2,789.00 USDRegular priceUnit price per -
Electrak XD Linear Actuator XD48B250-0600LXXRHM[S|M]N
DescriptionElectrak XD Linear Actuator, 48 VDC, Dynamic Load: 25.000 N (16 mm/s), Max. Stroke: 600 mm, Control: LXX = low-level signal motor switching + speed control + force feedback output, manual brake release and override, Rear-Adapter: M20 × 1.5 male thread, Front-Adapter: 16 mm cross hole, no dampening
Regular price $2,789.00 USDRegular priceUnit price per -
Electrak XD Linear Actuator XD48B250-0600LXXRNP[S|M]N
DescriptionElectrak XD Linear Actuator, 48 VDC, Dynamic Load: 25.000 N (16 mm/s), Max. Stroke: 600 mm, Control: LXX = low-level signal motor switching + speed control + force feedback output, manual brake release and override, Rear-Adapter: 16 mm forked cross hole, Front-Adapter: M20 × 1.5 female thread, no dampening
Regular price $2,789.00 USDRegular priceUnit price per -
Electrak XD Linear Actuator XD48B250-0600LXXRNH[S|M]N
DescriptionElectrak XD Linear Actuator, 48 VDC, Dynamic Load: 25.000 N (16 mm/s), Max. Stroke: 600 mm, Control: LXX = low-level signal motor switching + speed control + force feedback output, manual brake release and override, Rear-Adapter: 16 mm forked cross hole, Front-Adapter: M20 × 1.5 male thread, no dampening
Regular price $2,789.00 USDRegular priceUnit price per -
Electrak XD Linear Actuator XD48B250-0600LXXRNN[S|M]N
DescriptionElectrak XD Linear Actuator, 48 VDC, Dynamic Load: 25.000 N (16 mm/s), Max. Stroke: 600 mm, Control: LXX = low-level signal motor switching + speed control + force feedback output, manual brake release and override, Rear-Adapter: 16 mm forked cross hole, Front-Adapter: 16 mm forked cross hole, no dampening
Regular price $2,789.00 USDRegular priceUnit price per -
Electrak XD Linear Actuator XD48B250-0600LXXRNM[S|M]N
DescriptionElectrak XD Linear Actuator, 48 VDC, Dynamic Load: 25.000 N (16 mm/s), Max. Stroke: 600 mm, Control: LXX = low-level signal motor switching + speed control + force feedback output, manual brake release and override, Rear-Adapter: 16 mm forked cross hole, Front-Adapter: 16 mm cross hole, no dampening
Regular price $2,789.00 USDRegular priceUnit price per
