Thomson

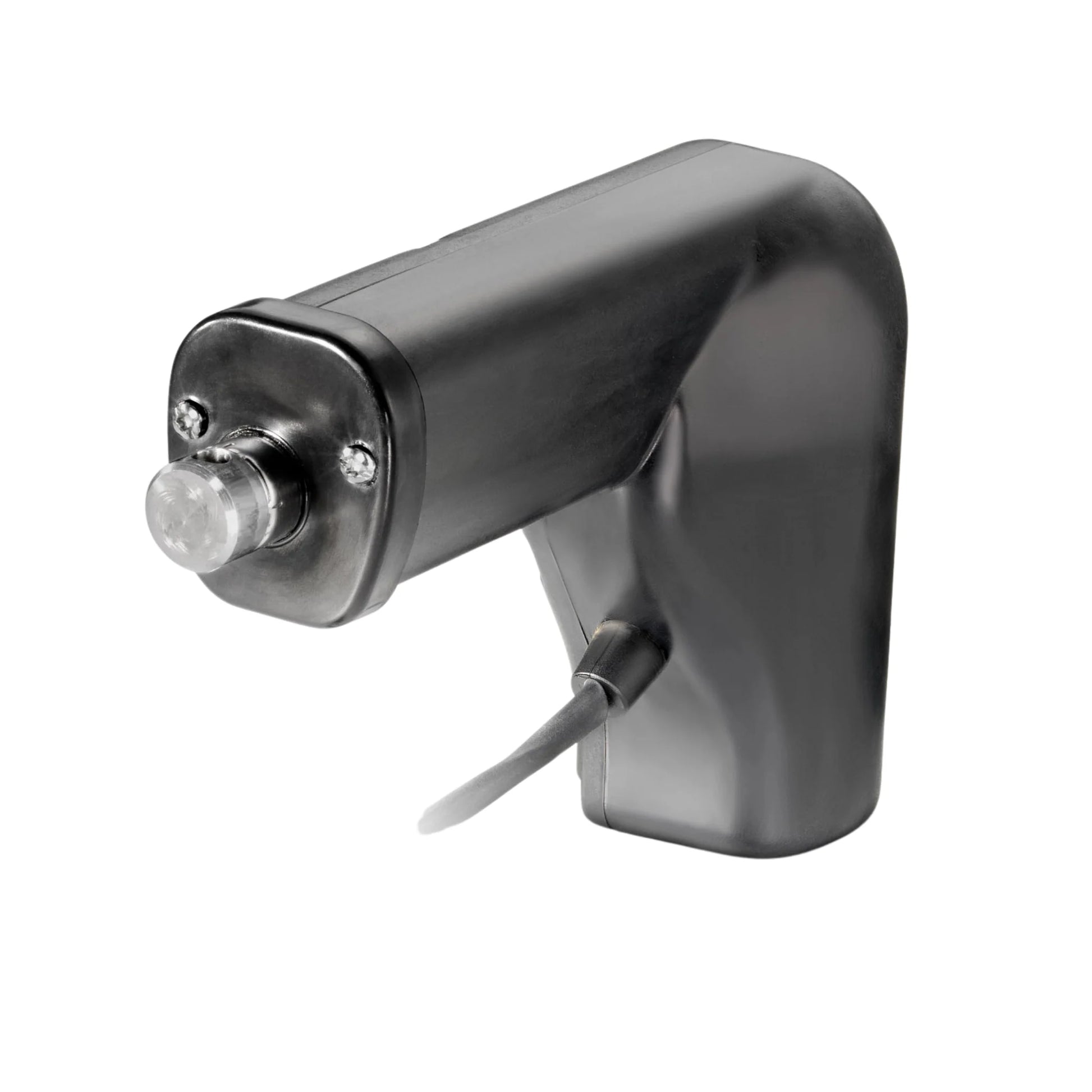

Electrak E050 Linearaktuator DE12-17W41-01NNHHN-CA

Elektrozylinder, 12 VDC, Dynamische Tragzahl: 510 N, Max. Hublänge: 1 inch (25,4 mm), Steuerung: ohne Potentiometer und Endlagenschalter, Querbohrungsausrichtung: Standardausrichtung, Querbohrungen in beiden Enden, Adapter Vorne: Querbohrung, 1/4 Zoll, Anschluss: Packard Electric Pack-Con

$463.00 USD
$463.00 USD
Sale Sold out
Shipping calculated at checkout.

Delivery Time

⏱ Manufacturing time:
working days
📦 Estimated shipping time:
7-10 working days (United States)

* According to the manufacturer’s information – as of April 10, 2026. If you have any questions, feel free to contact us by email: info@sr-linear.com.

  • Designed for office or medical applications
  • Small, quiet and lightweight
  • Short retracted length
  • Low cost
  • Durable and corrosion free plastic housing
  • Color molded into the plastic, no painting required
  • Maintenance free
  • Internally restrained extension tube
  • Estimated life is minimum 40000 cycles
View full details

Specifications

Product-Family Characteristics:
IP Rating, Static
IP56
Screw Type
Worn
Voltage Tolerance
± 10%
Temperature Min
-30 °C
Temperature Max
80 °C
Anti-Rotation
Yes
Brake
no (self-locking)
End Play, Max
1,5 mm
Material
Corrosion-free plastic, stainless steel
Restraining Torque
0 Nm
Manual Override
No
Product Characteristics:
.
Control
No option
Option
No option
Nominal Stroke
1 inch (25,4 mm)
Front Adapter Option
cross_hole_quarter_inch
Cross-Hole Orientation
standard_cross_hole_orientation_in_both_ends
Temperature Monitoring
No
Weight
0.59 kg
Voltage
12 VDC
Cable Length
150 mm
Special Connector
Packard Electric Pack-Con

Dimension

Product Characteristics:
Nominal Stroke [S]
1 inch (25,4 mm)
Dimension [A]
114.2

Performance

Product Characteristics:
Load, Static, Max
1.020 N
Load, Dynamic
510 N
Duty Cycle
25%
Current Draw @ no load/max. Load
1,4/3,8 amp
Restraining Torque
0 Nm
Max. Speed
12 mm/s
Min. Speed
9 mm/s
