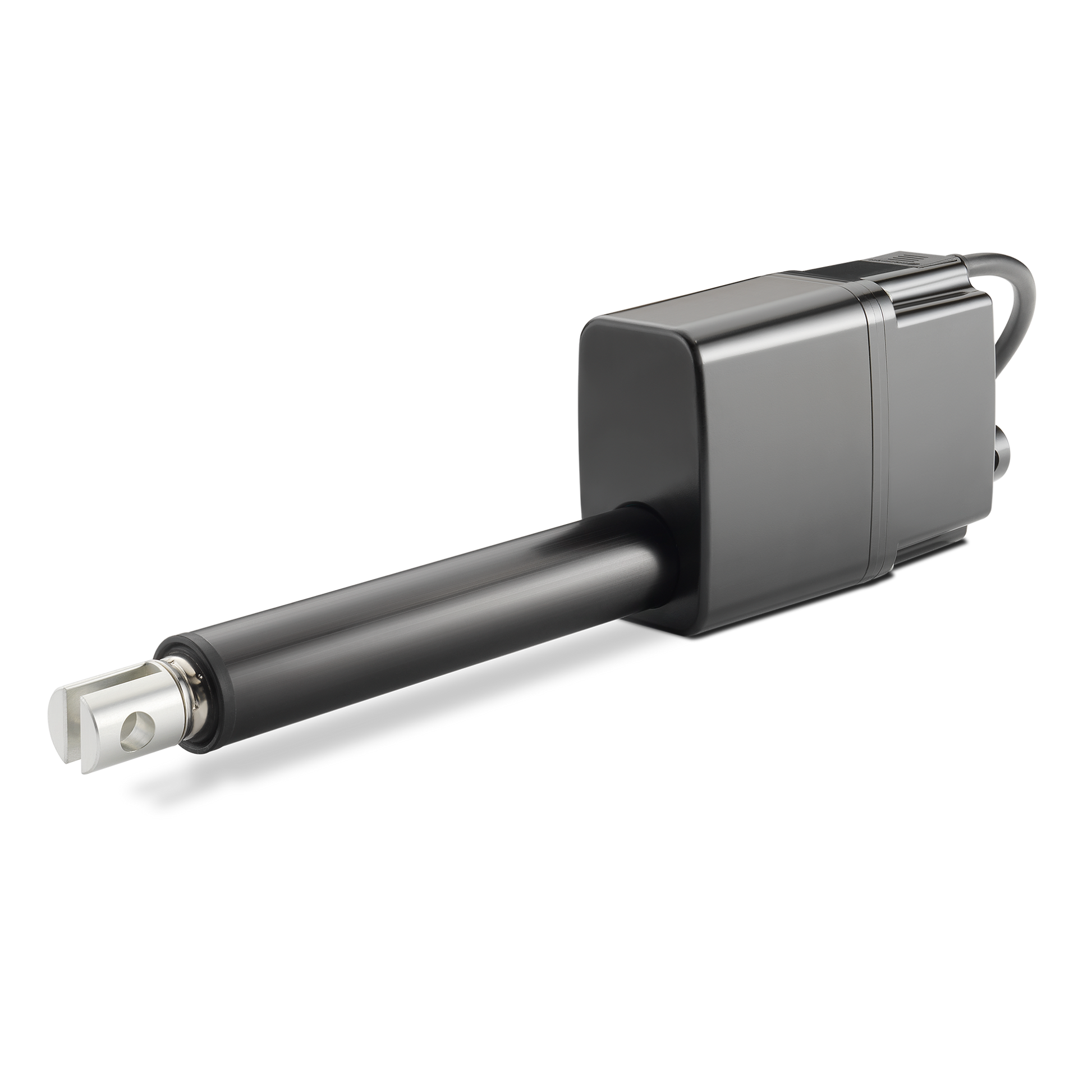

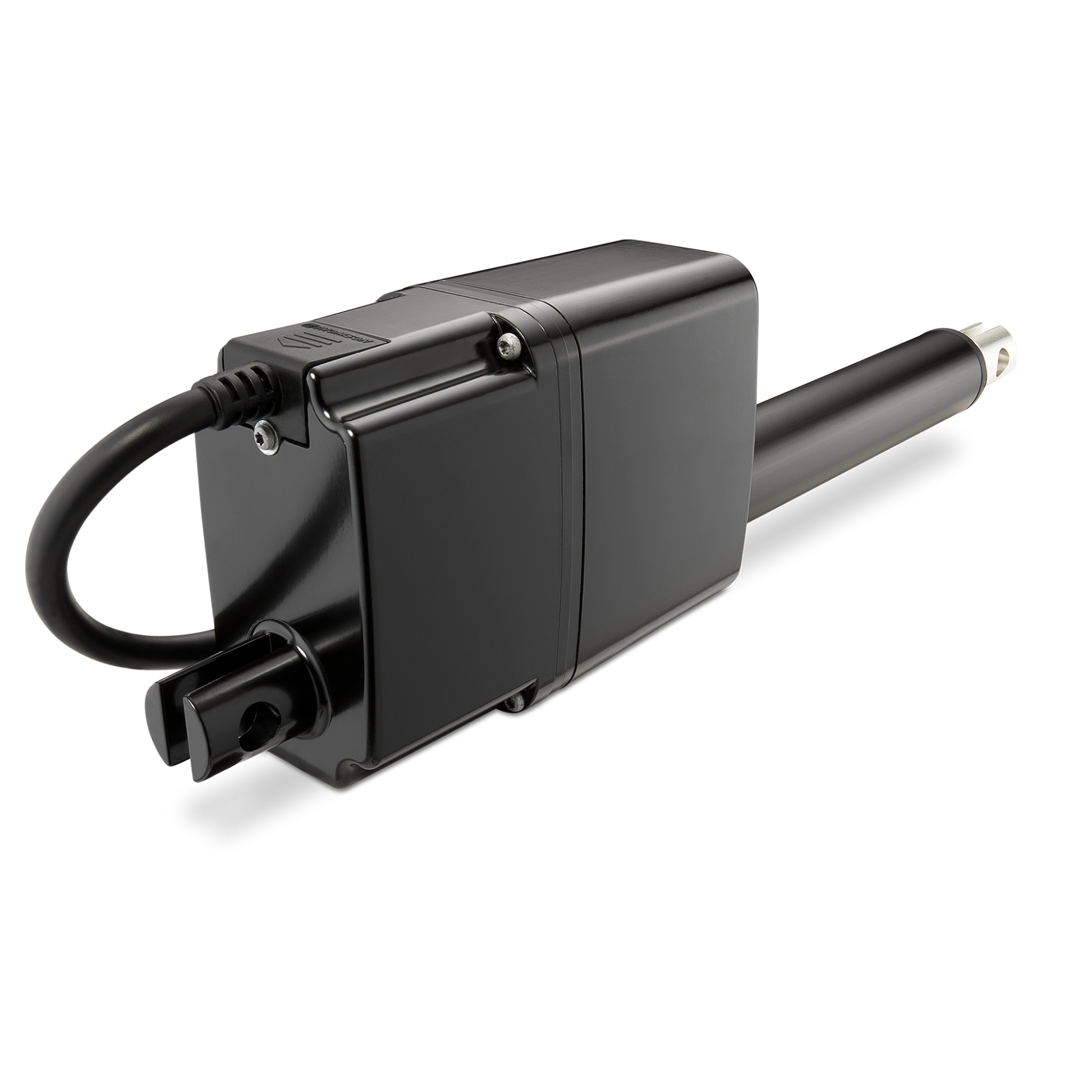

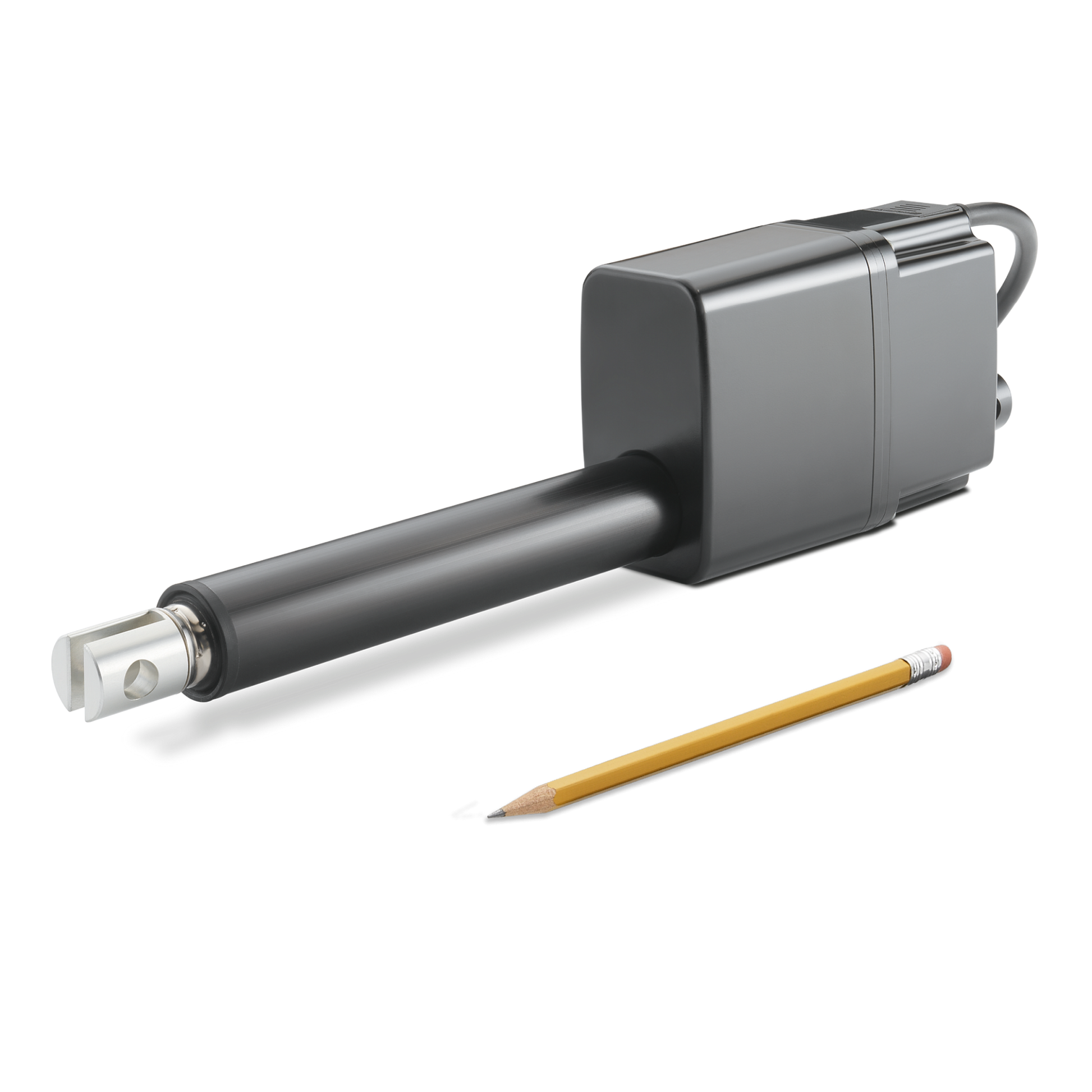

Electrak MD Thomson MD12A025-0050EXX1NNMD Linear Actuator

Electrak MD Thomson MD12A025-0050EXX1NNMD Linear Actuator

Linear Actuator, 12 VDC, Dynamic Load: 250 N (56 lbs), Acme, Max Stroke: 50 mm, Control: EXX = Electronic Monitoring Package only, 0,3 m Cable with Fyling Leads, Adapter 90° turned
€268,65 EUR
€268,65 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.
Manufacturing time:
25 working days*
*You can request a faster manufacturing time for small orders.
  • Advanced onboard controls, including J1939 CAN Bus
  • Compact and power-dense
  • Robust and tested to industry standards, including IP66, IP67, IP69K as well as 500 hour salt spray
View full details

Specifications

Product-Family Characteristics:
IP Rating, Static
IP67/IP69K
IP Rating, Dynamic
IP66
Screw Type
acme
Temperature Min
-40 °C / -40 °F
Temperature Max
85 °C / 185 °F
Anti-Rotation
yes
End Play, Max
1,2 mm / 0,047 in
Certifications
CE, RoHs, REACH, ISO 13766
Restraining Torque
0 Nm
Manual Override
no
Warranty
12 months
Special Connector
fyling leads
Product Characteristics:
.
Electrak Modular Control System options
EXX = Electronic Monitoring Package only
Protection, End of Stroke
End of Stroke
Protection, Mid Stroke
Electronic Load Monitoring
Nominal Stroke
50 mm
Front Adapter Option
Forked cross hole for 12 mm pin
Rear Adapter Option
Forked cross hole for 12 mm pin
Adapter Orientation
90° turned
Weight
1.1 kg
Voltage
12 VDC
Cable Length
0,3 m

Dimension

Product Characteristics:
Nominal Stroke [S]
50 mm
Dimension [A]
183.2 mm
Dimension [Ltot total]
206.6 mm

Performance

Product Characteristics:
Load, Static, Max
250 N
Load, Dynamic
250 N (56 lbs)
Duty Cyle
0.25
Current Draw @ no load/max. Load
1,2 / 5,2 amp
Max. Speed
52 mm/s
Min. Speed
43.8 mm/s
