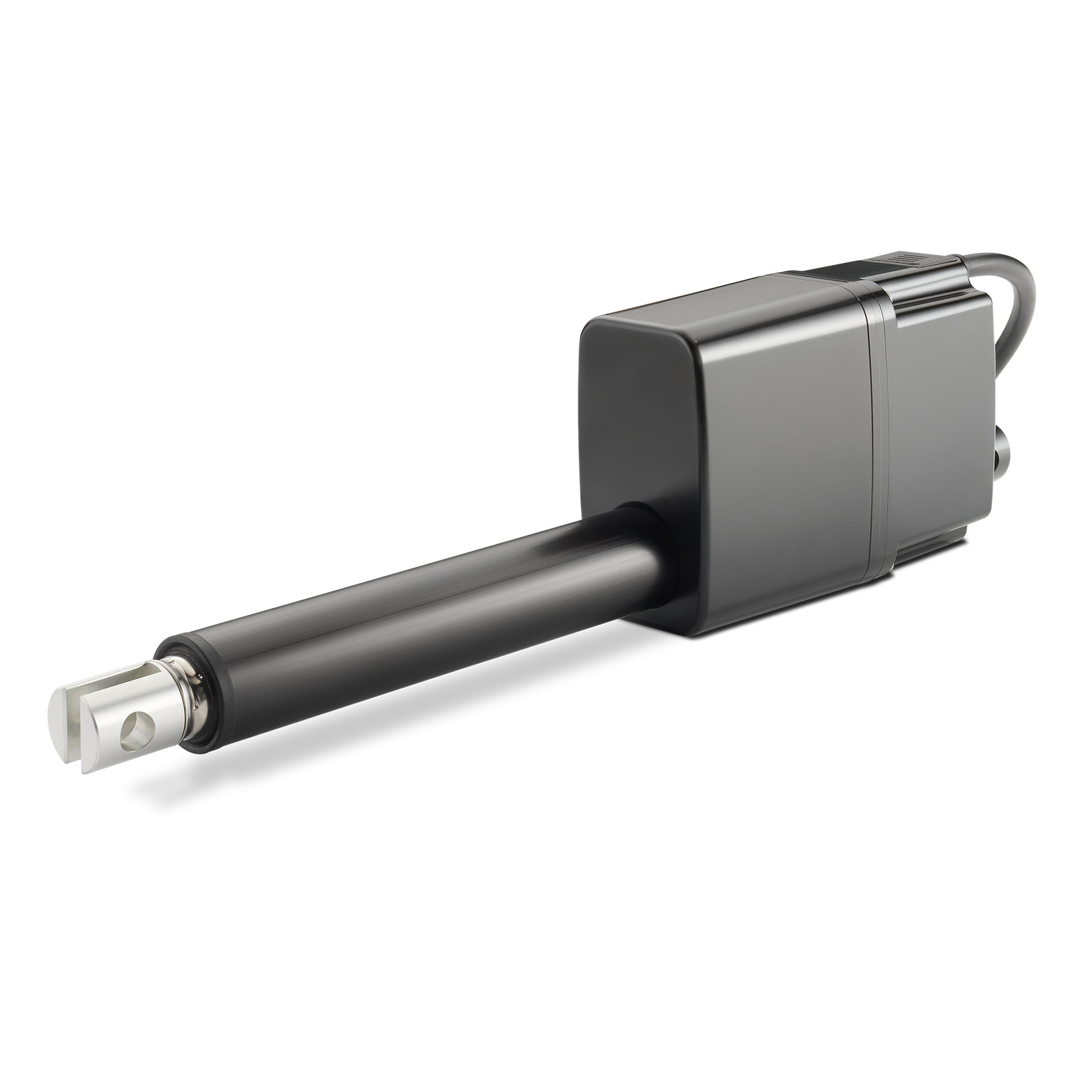

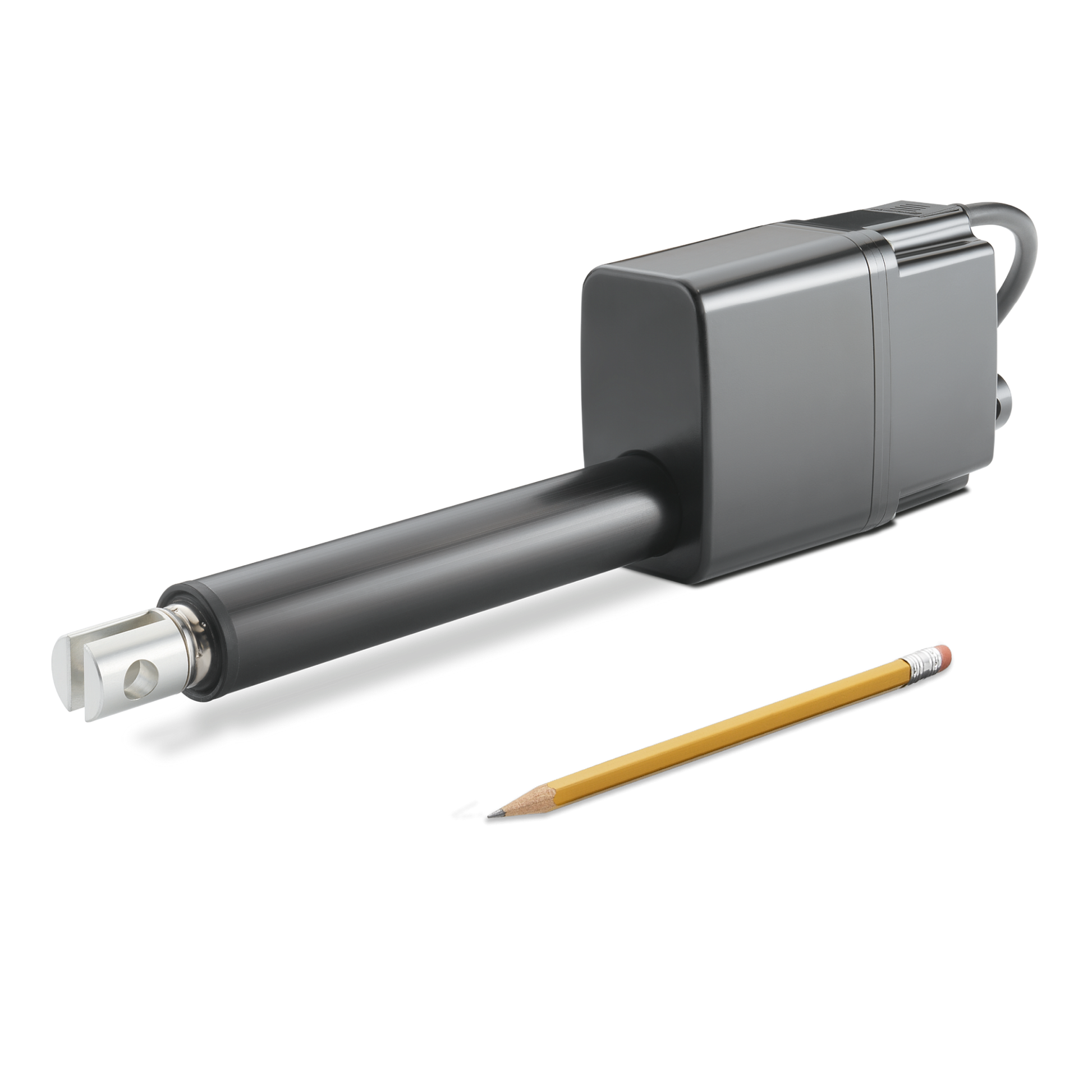

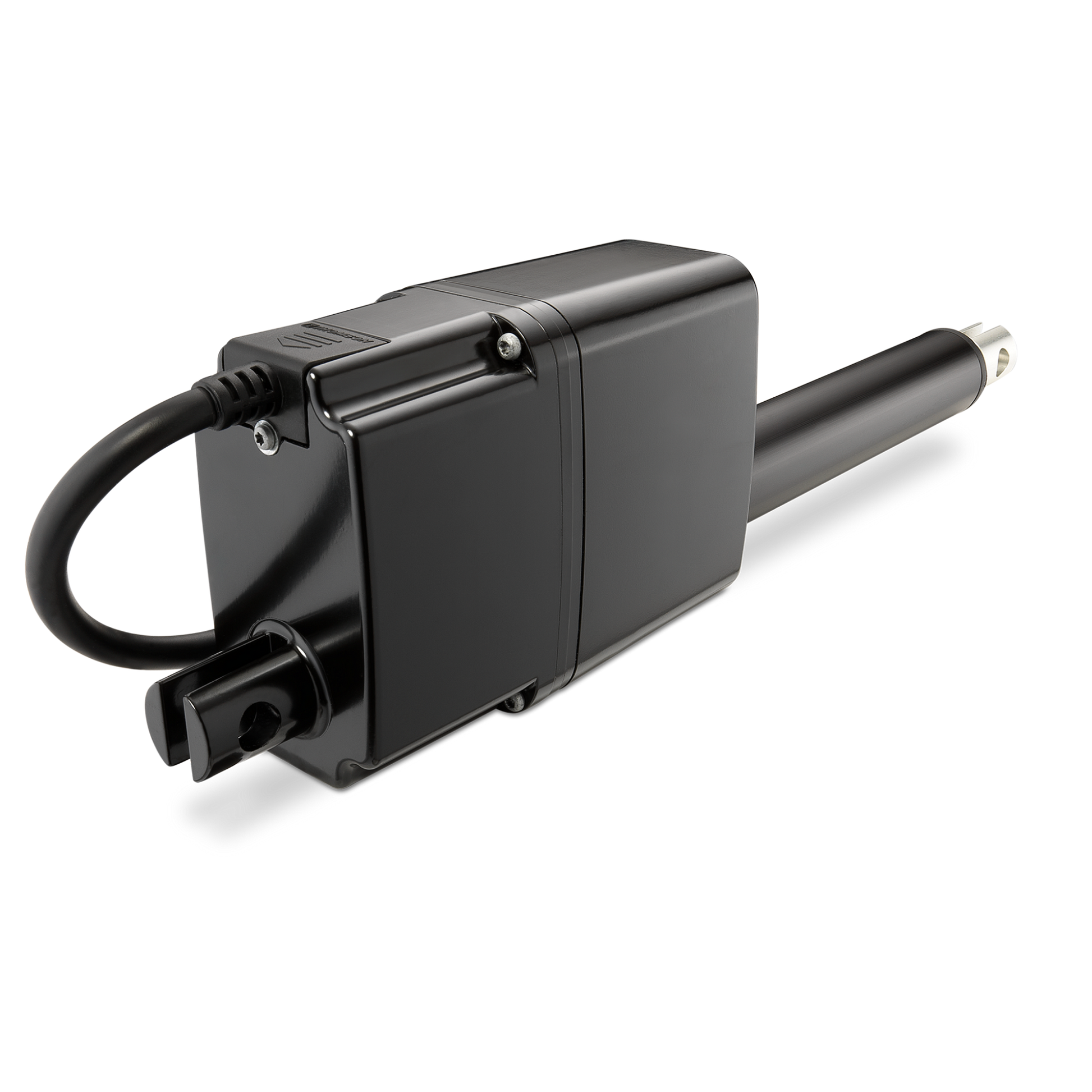

Electrak MD Thomson MD12A025-0050XXP1NNMD Linear Actuator

Electrak MD Thomson MD12A025-0050XXP1NNMD Linear Actuator

Linear Actuator, 12 VDC, Dynamic Load: 250 N (56 lbs), Acme, Max Stroke: 50 mm, Control: XXP = internal end-of-stroke limit switches + analog (potentiometer) position output, 0,3 m Cable with Fyling Leads, Adapter 90° turned
€287,85 EUR
€287,85 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.
Manufacturing time:
25 working days*
*You can request a faster manufacturing time for small orders.
  • Advanced onboard controls, including J1939 CAN Bus
  • Compact and power-dense
  • Robust and tested to industry standards, including IP66, IP67, IP69K as well as 500 hour salt spray
View full details

Specifications

Product-Family Characteristics:
IP Rating, Static
IP67/IP69K
IP Rating, Dynamic
IP66
Screw Type
acme
Temperature Min
-40 °C / -40 °F
Temperature Max
85 °C / 185 °F
Anti-Rotation
yes
End Play, Max
1,2 mm / 0,047 in
Certifications
CE, RoHs, REACH, ISO 13766
Restraining Torque
0 Nm
Manual Override
no
Warranty
12 months
Special Connector
fyling leads
Product Characteristics:
.
Electrak Modular Control System options
XXP = internal end-of-stroke limit switches + analog (potentiometer) position output
Protection, End of Stroke
End of Stroke
Protection, Mid Stroke
n/a
Nominal Stroke
50 mm
Front Adapter Option
Forked cross hole for 12 mm pin
Rear Adapter Option
Forked cross hole for 12 mm pin
Adapter Orientation
90° turned
Weight
1.1 kg
Voltage
12 VDC
Cable Length
0,3 m

Dimension

Product Characteristics:
Nominal Stroke [S]
50 mm
Dimension [A]
183.2 mm
Dimension [Ltot total]
206.6 mm

Performance

Product Characteristics:
Load, Static, Max
250 N
Load, Dynamic
250 N (56 lbs)
Duty Cyle
0.25
Current Draw @ no load/max. Load
1,2 / 5,2 amp
Max. Speed
52 mm/s
Min. Speed
43.8 mm/s
